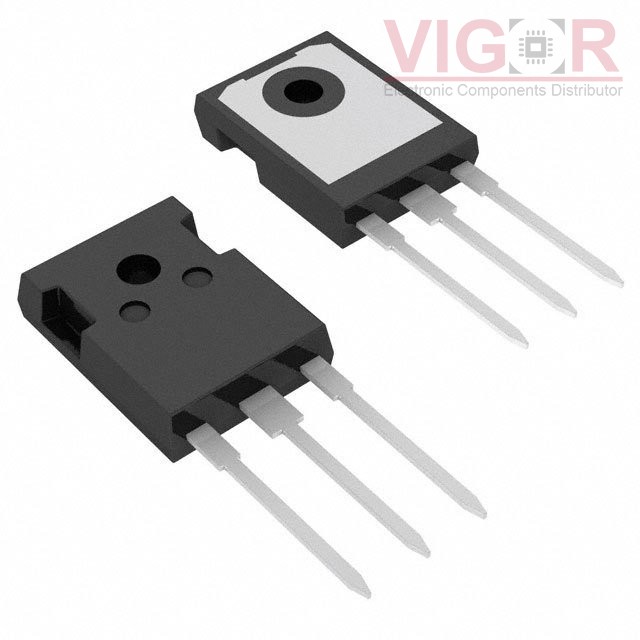

IXGH10N100U1

Part No :: IXGH10N100U1

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 4589085

Description: IGBT 1000V 20A 100W TO247AD

Catalog: Transistors - IGBTs - Single

DataSheet: IXGH10N100U1 PDF

Country of origin: -

Date code: -

IXGH10N100U1 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	1000 V
Current - Collector (Ic) (Max):	20 A
Current - Collector Pulsed (Icm):	40 A
Vce(on) (Max) @ Vge, Ic:	3.5V @ 15V, 10A
Power - Max:	100 W
Switching Energy:	2mJ (off)
Input Type:	Standard
Gate Charge:	52 nC
Td (on/off) @ 25°C:	100ns/550ns
Test Condition:	800V, 10A, 150Ohm, 15V
Reverse Recovery Time (trr):	60 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247AD (IXGH)
