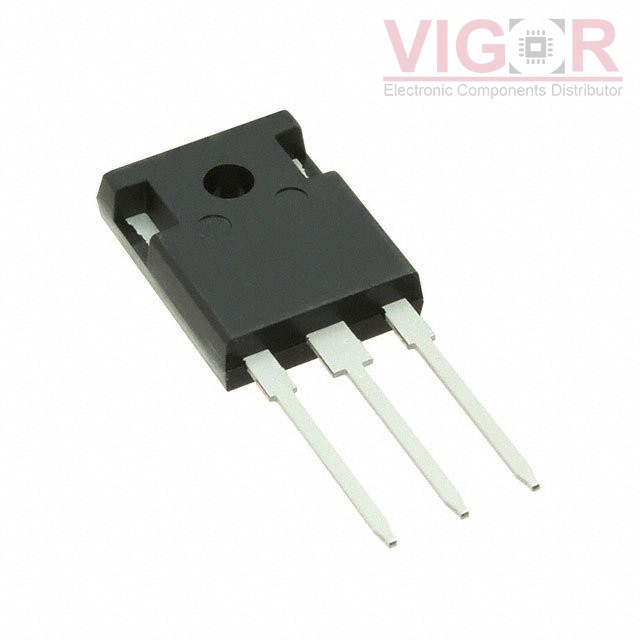

SGW15N120FKSA1

Part No :: SGW15N120FKSA1

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 4589133

Description: IGBT 1200V 30A 198W TO247-3

Catalog: Transistors - IGBTs - Single

DataSheet: SGW15N120FKSA1 PDF

Country of origin: -

Date code: -

SGW15N120FKSA1 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
IGBT Type:	NPT
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	30 A
Current - Collector Pulsed (Icm):	52 A
Vce(on) (Max) @ Vge, Ic:	3.6V @ 15V, 15A
Power - Max:	198 W
Switching Energy:	1.9mJ
Input Type:	Standard
Gate Charge:	130 nC
Td (on/off) @ 25°C:	18ns/580ns
Test Condition:	800V, 15A, 33Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	PG-TO247-3
