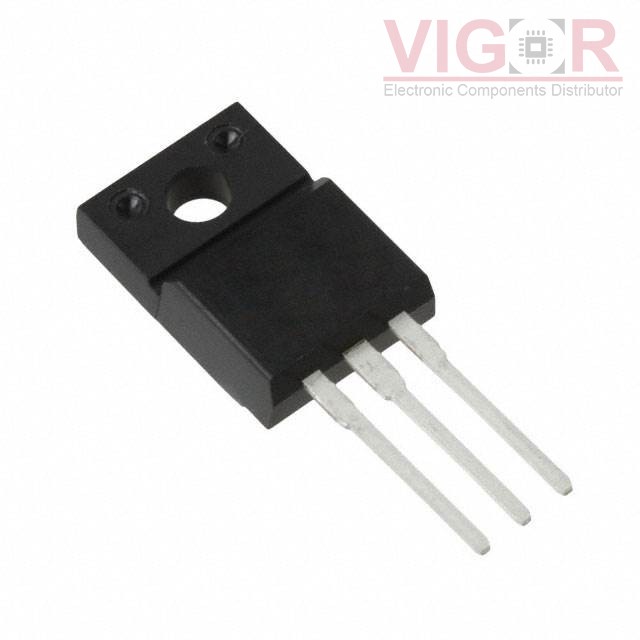

TIG056BF

Part No :: TIG056BF

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4589225

Description: IGBT 400V 30W TO220

Catalog: Transistors - IGBTs - Single

DataSheet: TIG056BF PDF

Country of origin: -

Date code: -

TIG056BF Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	430 V
Current - Collector (Ic) (Max):	-
Current - Collector Pulsed (Icm):	240 A
Vce(on) (Max) @ Vge, Ic:	5V @ 15V, 240A
Power - Max:	30 W
Switching Energy:	-
Input Type:	Standard
Gate Charge:	-
Td (on/off) @ 25°C:	46ns/140ns
Test Condition:	320V, 240A, 10Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-220-3 Full Pack
Supplier Device Package:	TO-220FI(LS)
