| Type | Description |
|---|---|
| Series: | OD1238 |
| Package: | Box |
| Part Status: | Active |
| Voltage - Rated: | 12VDC |
| Size / Dimension: | Square - 120mm L x 120mm H |
| Width: | 38.00mm |
| Air Flow: | 207.0 CFM (5.80m³/min) |
| Static Pressure: | 1.044 in H2O (260.0 Pa) |
| Bearing Type: | Ball |
| Fan Type: | Tubeaxial |
| Features: | PWM Control, Speed Sensor (Tach) |
| Noise: | 63.0dB |
| Power (Watts): | 27.6 W |
| RPM: | 5000 RPM |
| Termination: | 4 Wire Leads |
| Ingress Protection: | - |
| Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency: | cURus, TUV |
| Weight: | 0.827 lb (375.12 g) |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 25 | ||
| 100 | ||
| 250 |

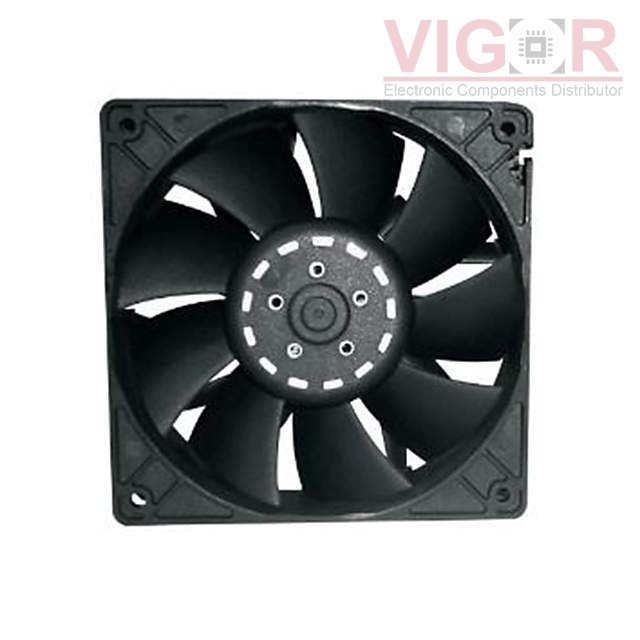

Current price of OD1238-12MBXJ10A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
FAN AXIAL 40X10MM 5VDC WIRE
FAN AXIAL 119X38MM 48VDC WIRE

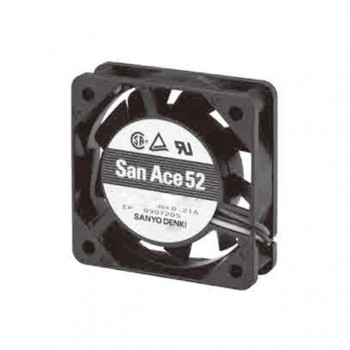

FAN 52X15MM 12VDC TACH,PWM
