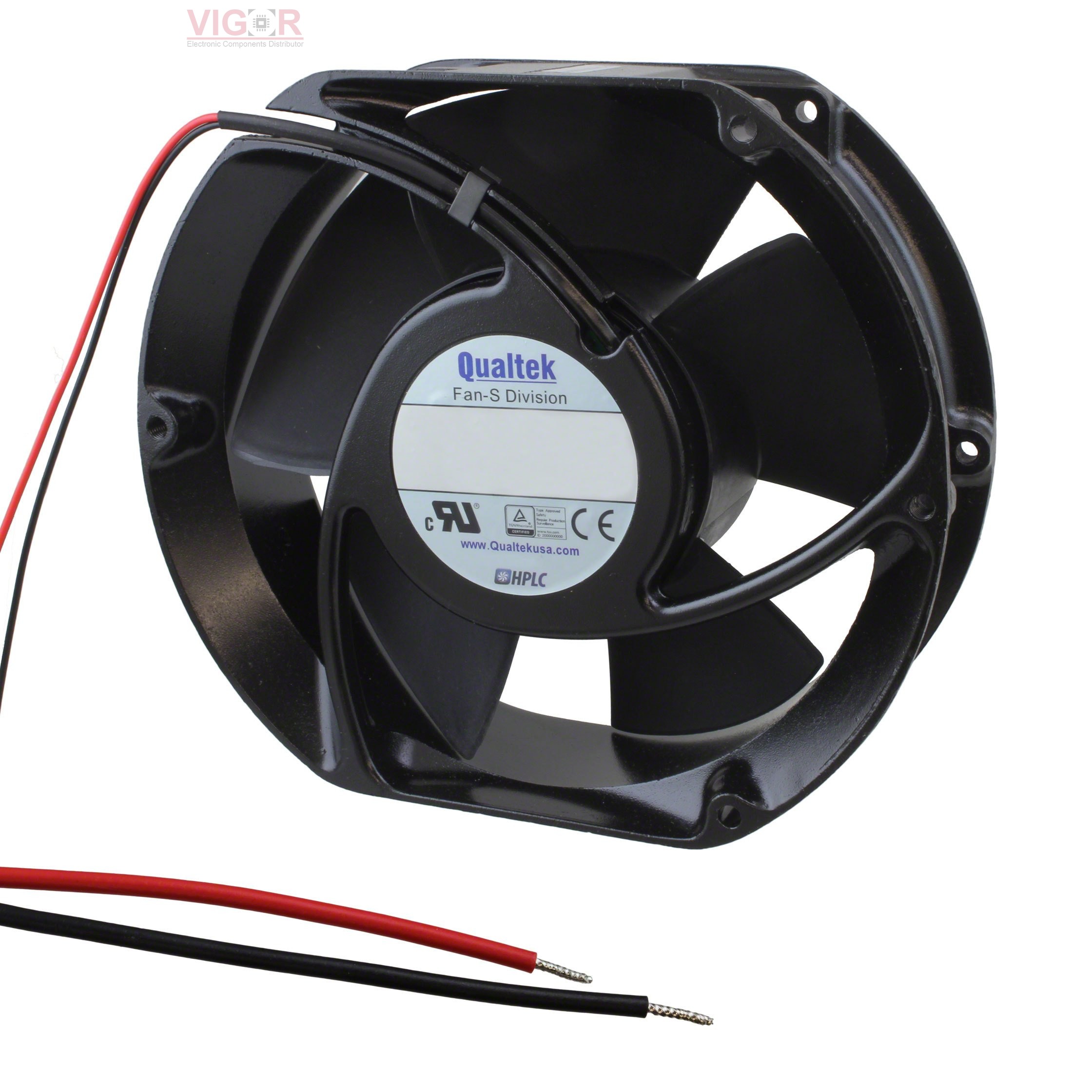

| Type | Description |
|---|---|
| Series: | HPLC, FDD1-17251 |
| Package: | Bulk |
| Part Status: | Active |
| Voltage - Rated: | 48VDC |
| Size / Dimension: | Rectangular/Rounded - 172mm L x 151mm H |
| Width: | 51.00mm |
| Air Flow: | 255.0 CFM (7.14m³/min) |
| Static Pressure: | 0.736 in H2O (183.3 Pa) |
| Bearing Type: | Ball |
| Fan Type: | Tubeaxial |
| Features: | - |
| Noise: | 56.0dB(A) |
| Power (Watts): | 21.6 W |
| RPM: | 3200 RPM |
| Termination: | 2 Wire Leads |
| Ingress Protection: | IP54 - Dust Protected, Water Resistant |
| Operating Temperature: | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency: | CE, cURus, TUV |
| Weight: | 2.5 lbs (1.1 kg) |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 12 |
Current price of FDD1-17251EBLW32-L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
FAN AXIAL 172X38.5MM 24VDC WIRE
FAN,CENTRIFUGAL,24VDC,63.9X69.5X

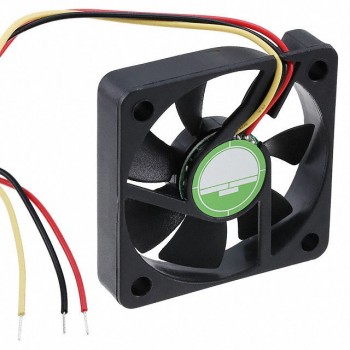

FAN AXIAL 50X10.5MM 5VDC WIRE
