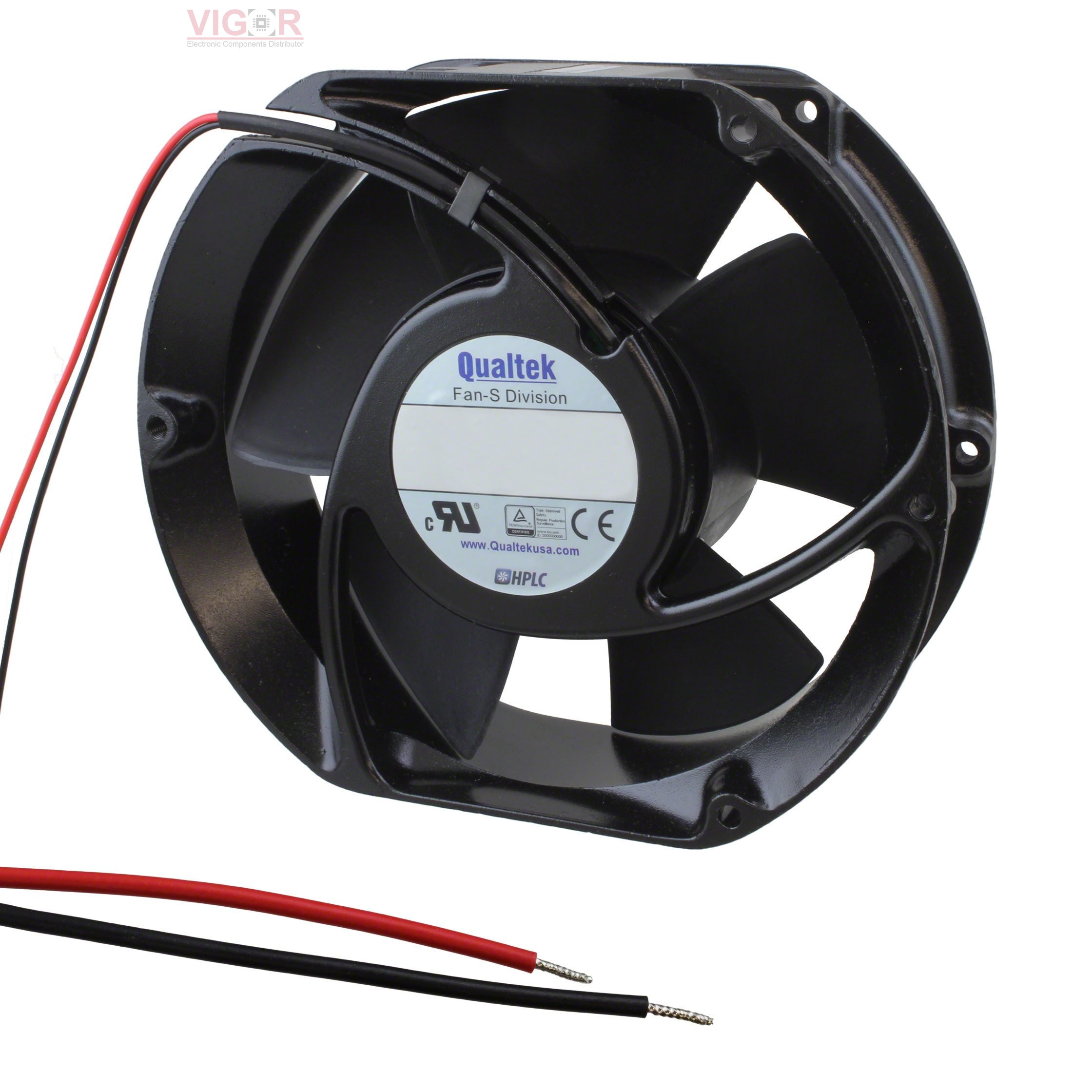

| Type | Description |
|---|---|
| Series: | HPLC, FDD1-17251 |
| Package: | Bulk |
| Part Status: | Active |
| Voltage - Rated: | 12VDC |
| Size / Dimension: | Rectangular/Rounded - 172mm L x 151mm H |
| Width: | 51.00mm |
| Air Flow: | 325.0 CFM (9.10m³/min) |
| Static Pressure: | 1.134 in H2O (282.5 Pa) |
| Bearing Type: | Ball |
| Fan Type: | Tubeaxial |
| Features: | - |
| Noise: | 64.0dB(A) |
| Power (Watts): | 44.8 W |
| RPM: | 4000 RPM |
| Termination: | 2 Wire Leads |
| Ingress Protection: | IP56M - Dust Protected, Water Resistant |
| Operating Temperature: | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency: | CE, cURus, TUV |
| Weight: | 2.5 lbs (1.1 kg) |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 12 |
Current price of FDD1-17251CBHW32-56 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
FAN AXIAL 40X20MM BALL 5VDC WIRE

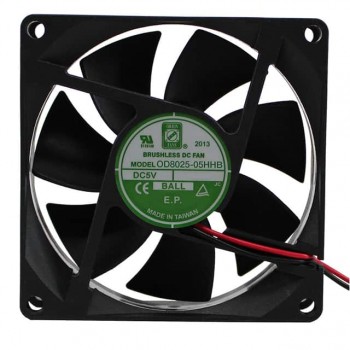

DC FAN, 80X80X25MM, DUAL BALL BE
