| Type | Description |
|---|---|
| Series: | OD4010 |
| Package: | Bulk |
| Part Status: | Active |
| Voltage - Rated: | 5VDC |
| Size / Dimension: | Square - 40mm L x 40mm H |
| Width: | 10.50mm |
| Air Flow: | 6.0 CFM (0.168m³/min) |
| Static Pressure: | 0.080 in H2O (19.9 Pa) |
| Bearing Type: | Ball |
| Fan Type: | Tubeaxial |
| Features: | Speed Sensor (Tach) |
| Noise: | 20.0dB |
| Power (Watts): | - |
| RPM: | 4800 RPM |
| Termination: | 3 Wire Leads |
| Ingress Protection: | - |
| Operating Temperature: | -4 ~ 176°F (-20 ~ 80°C) |
| Approval Agency: | cURus, TUV |
| Weight: | - |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 520 |
Current price of OD4010-05MB01A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
FAN AXIAL 172X50.8MM 48VDC WIRE
FAN AXIAL 92.5X25MM 24VDC WIRE

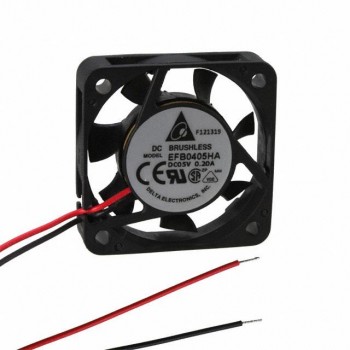

FAN AXIAL 40X10MM BALL 5VDC WIRE
