| Type | Description |
|---|---|

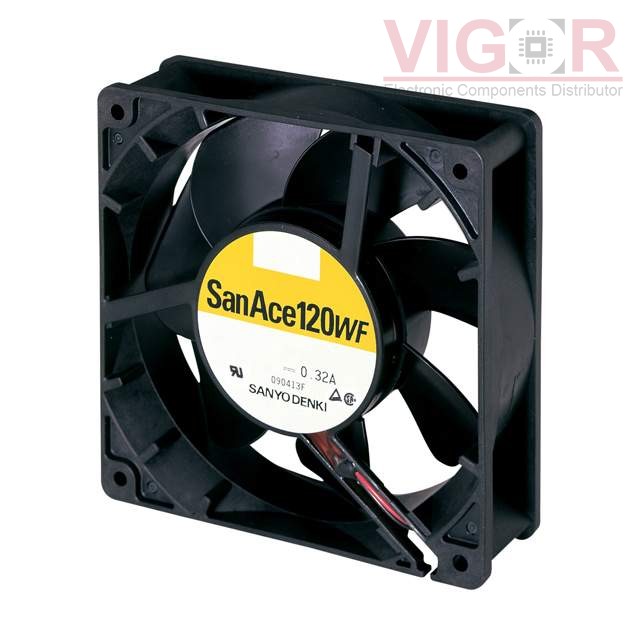

| Series: | San Ace 120W |
| Package: | Box |
| Part Status: | Active |
| Voltage - Rated: | 48VDC |
| Size / Dimension: | Square - 120mm L x 120mm H |
| Width: | 38.00mm |
| Air Flow: | 137.0 CFM (3.84m³/min) |
| Static Pressure: | 0.542 in H2O (135.0 Pa) |
| Bearing Type: | Ball |
| Fan Type: | Tubeaxial |
| Features: | Locked Rotor Protection |
| Noise: | 49.0dB(A) |
| Power (Watts): | 12 W |
| RPM: | 3600 RPM |
| Termination: | 2 Wire Leads |
| Ingress Protection: | IP55 - Dust Protected, Water Resistant |
| Operating Temperature: | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency: | CSA, TUV, UL |
| Weight: | 0.904 lb (410.05 g) |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 42 |
Current price of 9WG1248G102-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
