HSS-B20-0503H

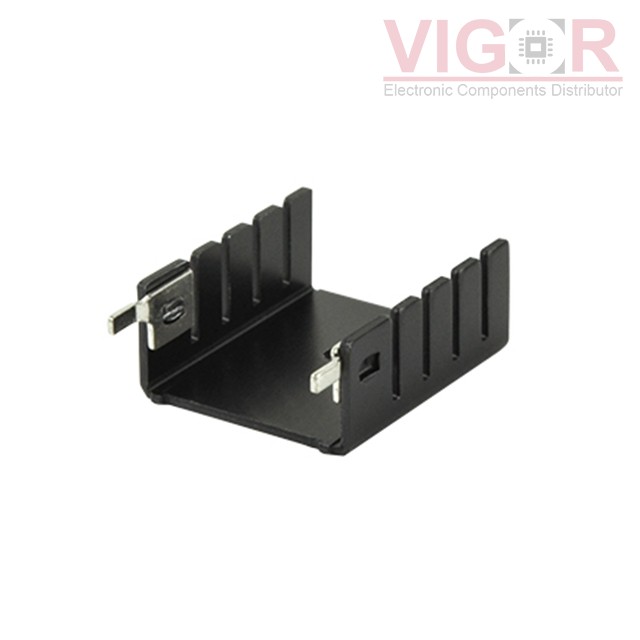

Image is for reference,
please contact us to get the real picture

Part No :: HSS-B20-0503H

Manufacturer: CUI Devices

Description: HEATSINK TO-220 4.6W ALUMINUM

Catalog: Thermal - Heat Sinks

Shipped from: HK warehouse

Expected Shipping Date: Oct 27 - Oct 31 2025

DataSheet: HSS-B20-0503H PDF

Availability: 0 pieces

Unit Price: ~~$0.58145~~

Current price of HSS-B20-0503H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HSS-B20-0503H Specifications

Type	Description
Series:	HSS
Package:	Box
Part Status:	Active
Type:	Board Level, Vertical
Package Cooled:	TO-220
Attachment Method:	PC Pin
Shape:	Rectangular, Fins
Length:	0.500" (12.70mm)
Width:	1.000" (25.40mm)
Diameter:	-
Fin Height:	1.180" (29.97mm)
Power Dissipation @ Temperature Rise:	4.6W @ 75°C
Thermal Resistance @ Forced Air Flow:	5.44°C/W @ 200 LFM
Thermal Resistance @ Natural:	16.30°C/W
Material:	Aluminum
Material Finish:	Black Anodized

Please confirm the specifications of the products when ordering.
