504222B00000G

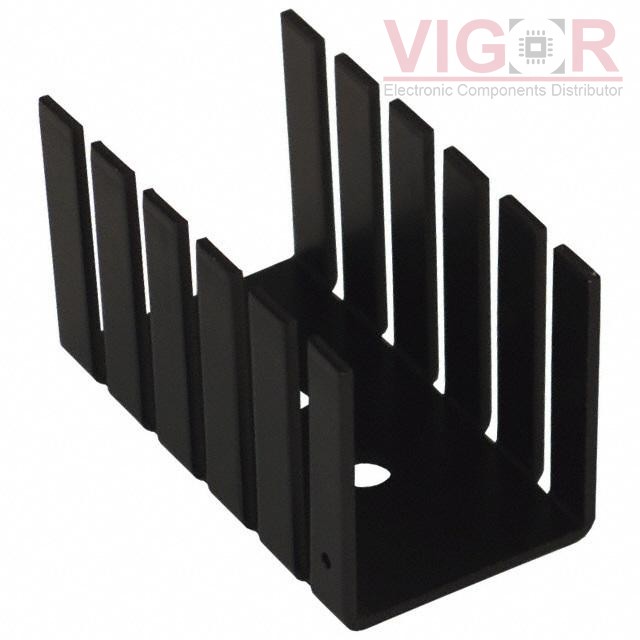

Image is for reference,
please contact us to get the real picture

Part No :: 504222B00000G

Manufacturer: Aavid

Description: HEATSINK TO-220 PWR CLR 1.45"10W

Catalog: Thermal - Heat Sinks

Shipped from: HK warehouse

Expected Shipping Date: Nov 01 - Nov 05 2025

DataSheet: 504222B00000G PDF

Availability: 71 pieces

Unit Price: ~~$1.75000~~

Current price of 504222B00000G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

504222B00000G Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Type:	Board Level
Package Cooled:	TO-220 (Dual)
Attachment Method:	Bolt On
Shape:	Rectangular, Fins
Length:	1.450" (36.83mm)
Width:	0.780" (19.81mm)
Diameter:	-
Fin Height:	0.850" (21.60mm)
Power Dissipation @ Temperature Rise:	4.0W @ 40°C
Thermal Resistance @ Forced Air Flow:	5.00°C/W @ 200 LFM
Thermal Resistance @ Natural:	6.40°C/W
Material:	Aluminum
Material Finish:	Black Anodized
