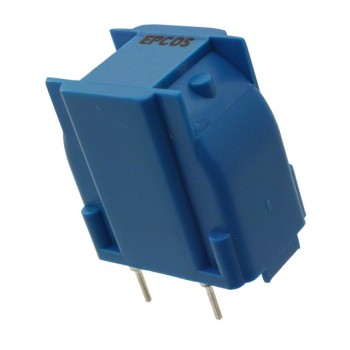

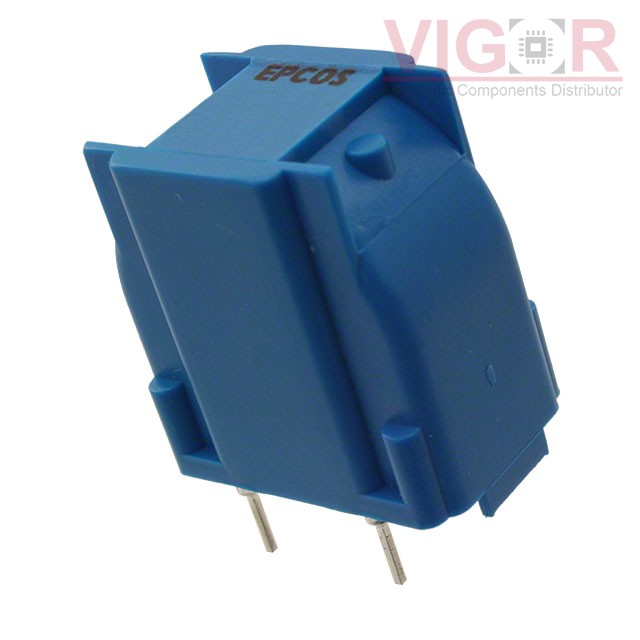

B82723J2402N001

Part No :: B82723J2402N001

Manufacturer: TDK EPCOS

Description: CMC 2.7MH 4A 2LN TH

Catalog: Common Mode Chokes

DataSheet: B82723J2402N001 PDF

Availability: 0 pieces

Current price of B82723J2402N001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82723J2402N001 Specifications

Type	Description
Series:	B82723
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	2.7 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	4A
DC Resistance (DCR) (Max):	60mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	ENEC, UR, VDE
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.102" L x 0.591" W (28.00mm x 15.00mm)
Height (Max):	1.201" (30.50mm)
Package / Case:	Vertical, 4 PC Pin
