AWCU00453226513TM2

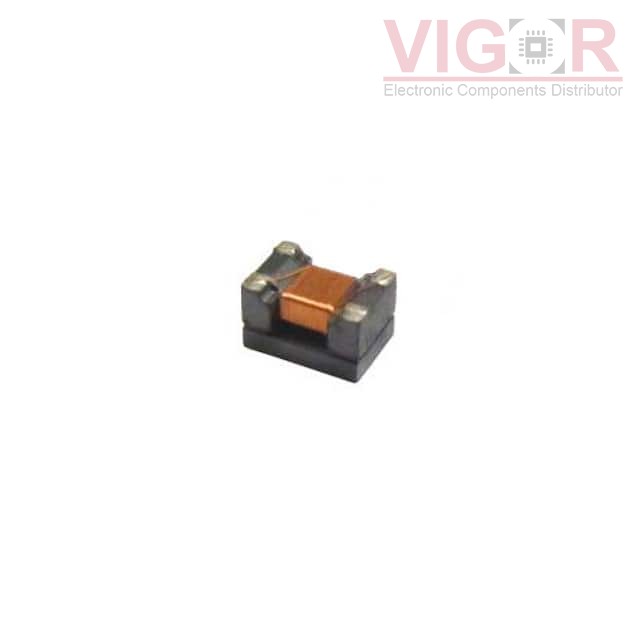

Image is for reference,
please contact us to get the real picture

Part No :: AWCU00453226513TM2

Manufacturer: Chilisin Electronics

Description: COMMON MODE CHOKE, AEC-Q200

Catalog: Common Mode Chokes

DataSheet: AWCU00453226513TM2 PDF

Availability: 4933 pieces

Unit Price: ~~$1.44000~~

Current price of AWCU00453226513TM2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AWCU00453226513TM2 Specifications

Type	Description
Series:	*
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	230mA
DC Resistance (DCR) (Max):	1Ohm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-50°C ~ 150°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max):	0.110" (2.80mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
