SC-20-05J-P

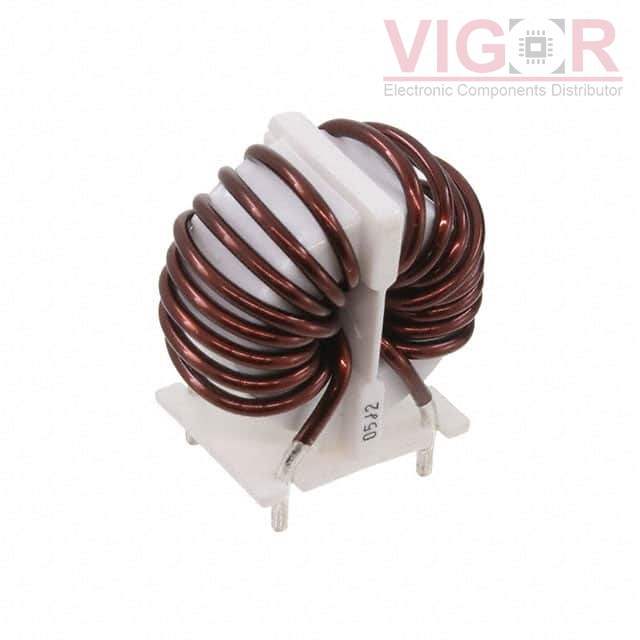

Image is for reference,
please contact us to get the real picture

Part No :: SC-20-05J-P

Manufacturer: KEMET

Description: CMC 0.4875MH,20A, 0.0036OHM

Catalog: Common Mode Chokes

DataSheet: SC-20-05J-P PDF

Availability: 163 pieces

Unit Price: ~~$5.55000~~

Current price of SC-20-05J-P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SC-20-05J-P Specifications

Type	Description
Series:	*
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	487.5 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	20A
DC Resistance (DCR) (Max):	3.6mOhm
Voltage Rating - DC:	250V
Voltage Rating - AC:	250V
Operating Temperature:	25°C ~ 120°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.417" L x 0.984" W (36.00mm x 25.00mm)
Height (Max):	1.378" (35.00mm)
Package / Case:	Vertical, 4 PC Pin
