744235900

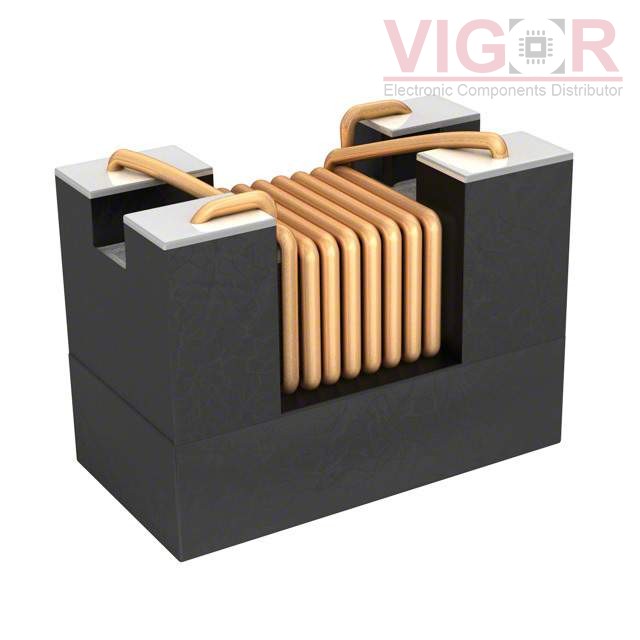

Image is for reference,
please contact us to get the real picture

Part No :: 744235900

Manufacturer: Würth Elektronik Midcom

Description: CMC 300NH 2A 2LN 90 OHM SMD

Catalog: Common Mode Chokes

DataSheet: 744235900 PDF

Availability: 3069 pieces

Unit Price: ~~$1.69000~~

Current price of 744235900 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

744235900 Specifications

Type	Description
Series:	WE-CNSW
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	90 Ohms @ 100 MHz
Inductance @ Frequency:	300 nH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2A
DC Resistance (DCR) (Max):	50mOhm
Voltage Rating - DC:	60V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max):	0.118" (3.00mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
