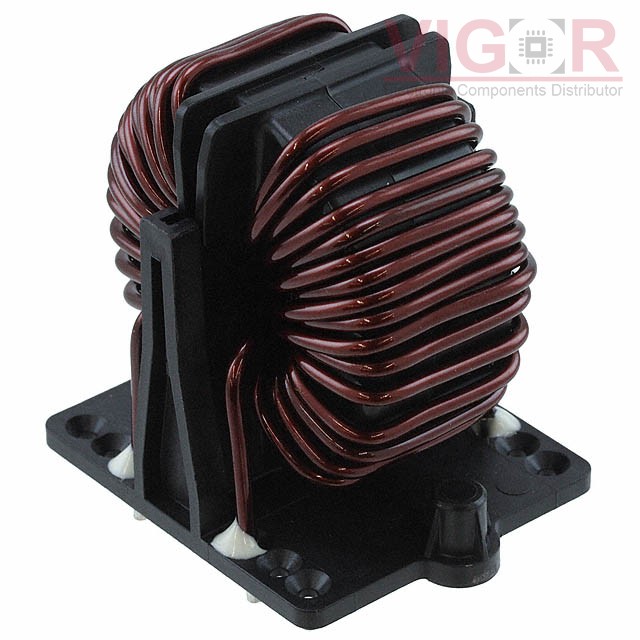

RB8522-16-3M0

Part No :: RB8522-16-3M0

Manufacturer: Schaffner EMC, Inc.

VIGOR # :: 4037032

Description: COMMON MODE CHOKE 3MH 16A 2LN TH

Catalog: Common Mode Chokes

DataSheet: RB8522-16-3M0 PDF

Country of origin: -

Date code: -

RB8522-16-3M0 Specifications

Type	Description
Series:	RB
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	3 mH @ 400 Hz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	16A
DC Resistance (DCR) (Max):	8.4mOhm (Typ)
Voltage Rating - DC:	1000V (1kV)
Voltage Rating - AC:	600V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.969" L x 1.709" W (50.00mm x 43.40mm)
Height (Max):	2.283" (58.00mm)
Package / Case:	Vertical, 8 PC Pin
