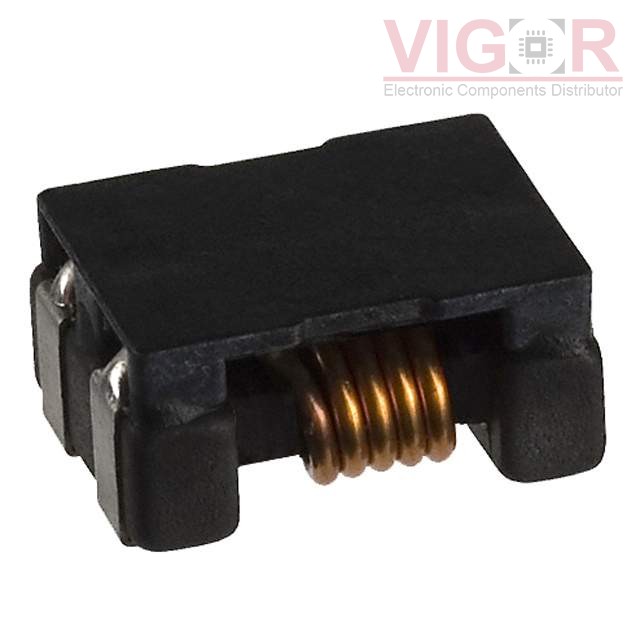

ACM7060-301-2PL-TL01

Part No :: ACM7060-301-2PL-TL01

Manufacturer: TDK Corporation

VIGOR # :: 4037086

Description: CMC 5A 2LN 300 OHM SMD

Catalog: Common Mode Chokes

DataSheet: ACM7060-301-2PL-TL01 PDF

Country of origin: -

Date code: -

ACM7060-301-2PL-TL01 Specifications

Type	Description
Series:	ACM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	300 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	5A
DC Resistance (DCR) (Max):	10mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.276" L x 0.236" W (7.00mm x 6.00mm)
Height (Max):	0.138" (3.50mm)
Package / Case:	Horizontal, 4 PC Pad
