CPFC74NP-PS10H2A15

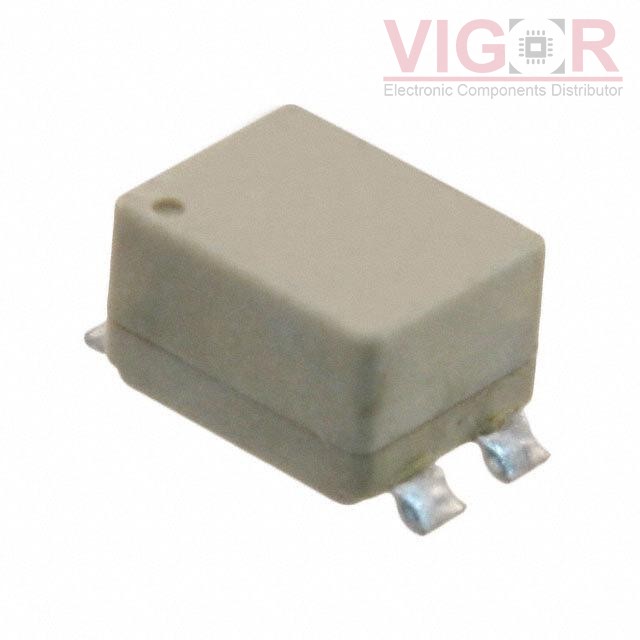

Image is for reference,
please contact us to get the real picture

Part No :: CPFC74NP-PS10H2A15

Manufacturer: Sumida Corporation

Description: CMC 1.5A 2LN 700 OHM SMD

Catalog: Common Mode Chokes

DataSheet: CPFC74NP-PS10H2A15 PDF

Availability: 745 pieces

Unit Price: ~~$1.22000~~

Current price of CPFC74NP-PS10H2A15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CPFC74NP-PS10H2A15 Specifications

Type	Description
Series:	CPFC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	700 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.5A
DC Resistance (DCR) (Max):	120mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max):	0.200" (5.08mm)
Package / Case:	Vertical, 4 Gull Wing

Please confirm the specifications of the products when ordering.
