748020024

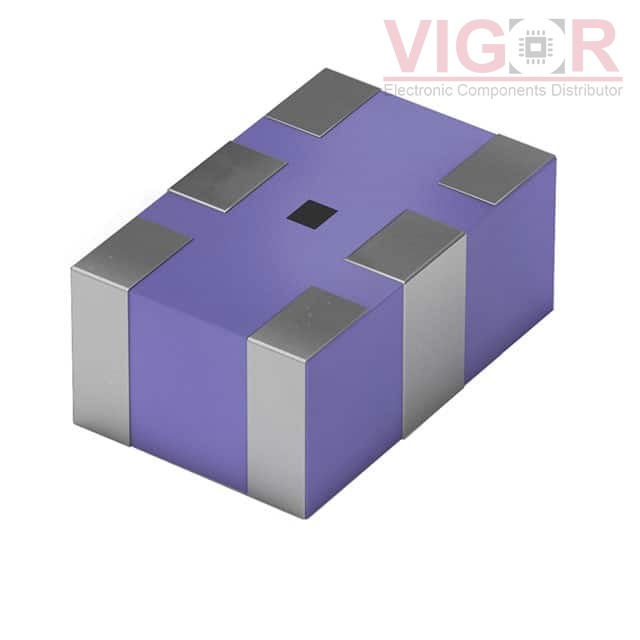

Image is for reference,
please contact us to get the real picture

Part No :: 748020024

Manufacturer: Würth Elektronik Midcom

Description: WE-CCMF SMT CERAMIC COMMON MODE

Catalog: Common Mode Chokes

DataSheet: 748020024 PDF

Availability: 1578 pieces

Unit Price: ~~$0.68000~~

Current price of 748020024 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

748020024 Specifications

Type	Description
Series:	WE-CCMF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	2 Ohms @ 100 MHz
Inductance @ Frequency:	0.245 nH @ 100 MHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	300mA
DC Resistance (DCR) (Max):	2.5Ohm
Voltage Rating - DC:	5V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max):	0.035" (0.90mm)
Package / Case:	0504 (1210 Metric), 6 PC Pad
