T8113NL

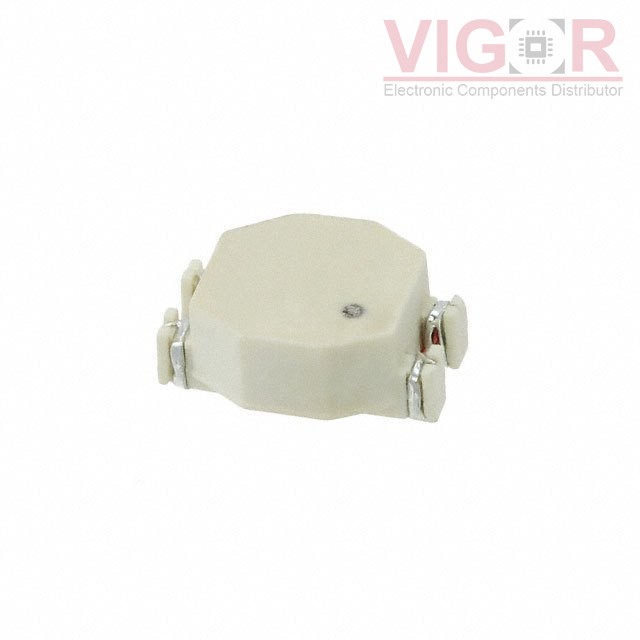

Product image
Product thumb
Part No :

T8113NL

Manufacturer
PulseLarsen Antenna
VIGOR # :

4037753

Description
CMC 2.2MH 500MA 2LN 700 OHM SMD
Catalog
Common Mode Chokes
DataSheet
T8113NL PDF
Country of origin
-
Date code
-
ads
T8113NL Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:700 Ohms @ 100 MHz
Inductance @ Frequency:2.2 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):500mA
DC Resistance (DCR) (Max):400mOhm
Voltage Rating - DC:80V
Voltage Rating - AC:-
Operating Temperature:0°C ~ 70°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.350" L x 0.248" W (8.90mm x 6.30mm)
Height (Max):0.161" (4.10mm)
Package / Case:Horizontal, 4 PC Pad
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Dec 30 - Jan 03 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.33 $1.33
75 $0.97 $72.76
150 $0.87 $130.48
525 $0.71 $372.50
1050 $0.65 $681.85
2550 $0.63 $1 604.82

Current price of T8113NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
ACM90V-701-2PL-TL00

ACM90V-701-2PL-TL00

CMC 5A 2LN 700 OHM SMD AEC-Q200

SSRH24NVS-40059

SSRH24NVS-40059

CMC 5.9MH 4A 0.055OHMWIDE IMPEDA

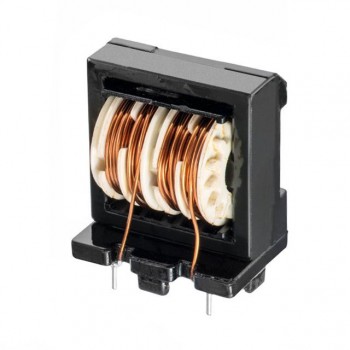

744866563
