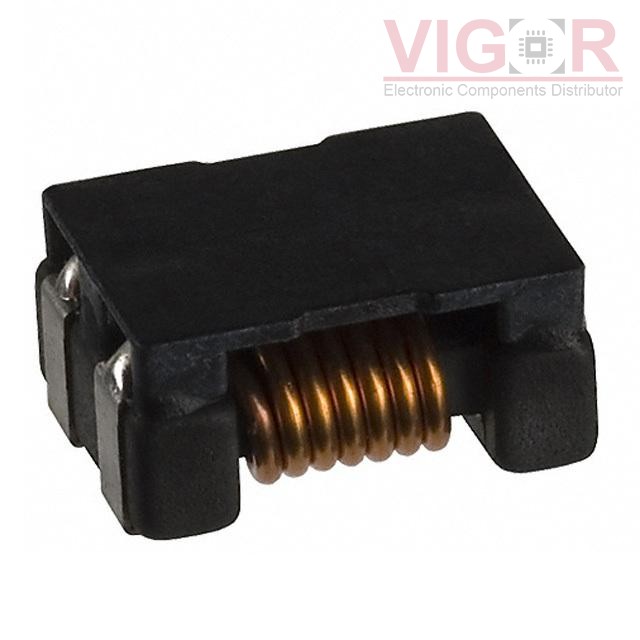

ACM90V-701-2PL-TL00

Part No :: ACM90V-701-2PL-TL00

Manufacturer: TDK Corporation

VIGOR # :: 4037754

Description: CMC 5A 2LN 700 OHM SMD AEC-Q200

Catalog: Common Mode Chokes

DataSheet: ACM90V-701-2PL-TL00 PDF

Country of origin: -

Date code: -

ACM90V-701-2PL-TL00 Specifications

Type	Description
Series:	ACM-V
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	700 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	5A
DC Resistance (DCR) (Max):	10mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.354" L x 0.276" W (9.00mm x 7.00mm)
Height (Max):	0.177" (4.50mm)
Package / Case:	Horizontal, 4 J-Lead
