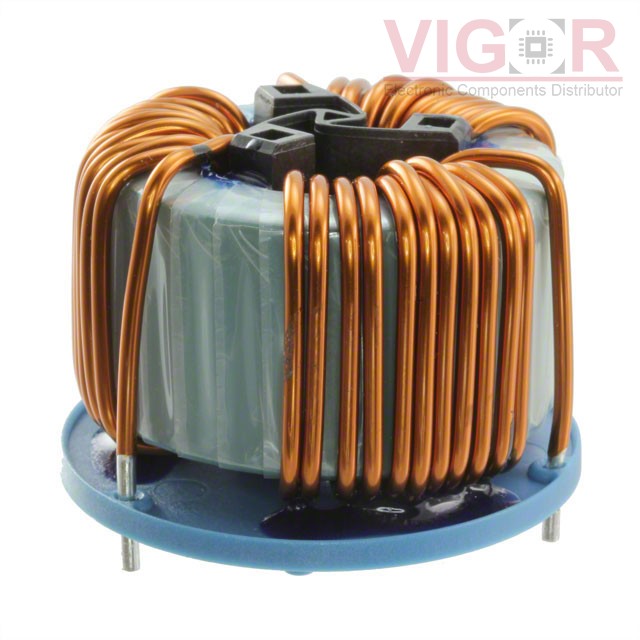

B82746S4143A040

Part No :: B82746S4143A040

Manufacturer: TDK EPCOS

Description: CMC 3.2MH 13A 3LN TH

Catalog: Common Mode Chokes

DataSheet: B82746S4143A040 PDF

Availability: 0 pieces

Current price of B82746S4143A040 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82746S4143A040 Specifications

Type	Description
Series:	B82746
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	3
Impedance @ Frequency:	-
Inductance @ Frequency:	3.2 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	13A
DC Resistance (DCR) (Max):	6.5mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	440/250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	UR
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	2.047" Dia (52.00mm)
Height (Max):	1.535" (39.00mm)
Package / Case:	Horizontal, 6 PC Pin

Please confirm the specifications of the products when ordering.
