SNT-D20

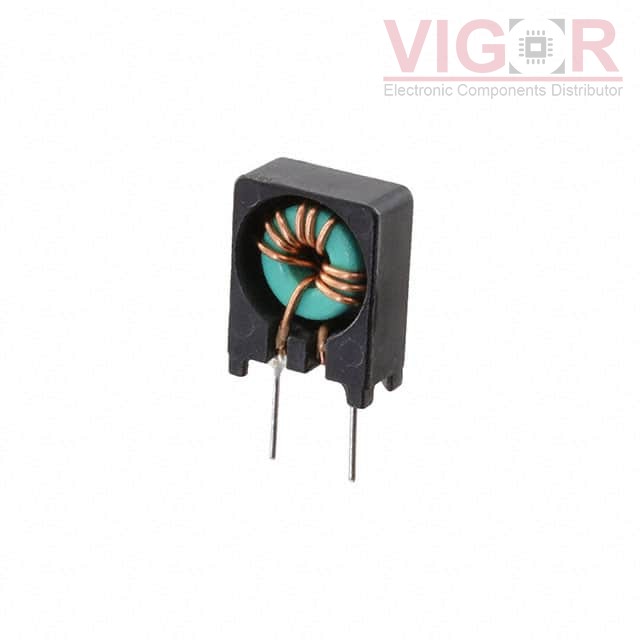

Image is for reference,
please contact us to get the real picture

Part No :: SNT-D20

Manufacturer: KEMET

Description: NMC, TROID, 10UH, 45OHM

Catalog: Common Mode Chokes

DataSheet: SNT-D20 PDF

Availability: 1000 pieces

Unit Price: ~~$2.68000~~

Current price of SNT-D20 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SNT-D20 Specifications

Type	Description
Series:	*
Package:	Bulk
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	10 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.5A
DC Resistance (DCR) (Max):	45Ohm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	20°C ~ 60°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.374" L x 0.236" W (9.50mm x 6.00mm)
Height (Max):	0.500" (12.70mm)
Package / Case:	Vertical, 2 PC Pin
