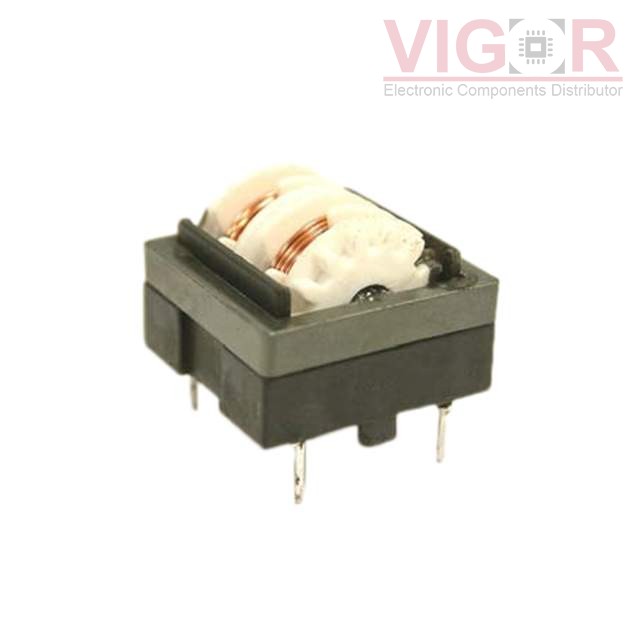

ET2825-032

Image is for reference,
please contact us to get the real picture

Part No :: ET2825-032

Manufacturer: Triad Magnetics

Description: CMC 8MH 2.5A 2LN TH

Catalog: Common Mode Chokes

DataSheet: ET2825-032 PDF

Availability: 246 pieces

Unit Price: ~~$5.13000~~

Current price of ET2825-032 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ET2825-032 Specifications

Type	Description
Series:	ET
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	8 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2.5A
DC Resistance (DCR) (Max):	190mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-20°C ~ 105°C
Ratings:	-
Approval Agency:	CSA, IEC, UL
Features:	ESD
Mounting Type:	Through Hole
Size / Dimension:	1.181" L x 1.181" W (30.00mm x 30.00mm)
Height (Max):	0.984" (25.00mm)
Package / Case:	Horizontal, 4 PC Pin
