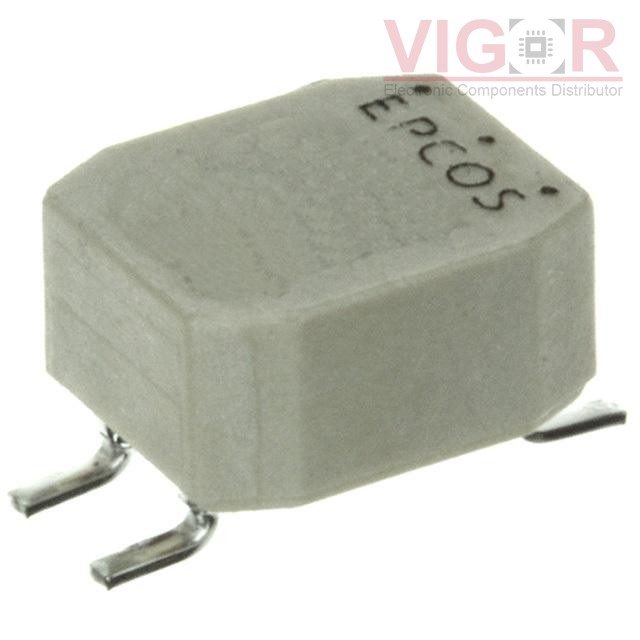

B82793C0113N201

Image is for reference,
please contact us to get the real picture

Part No :: B82793C0113N201

Manufacturer: TDK EPCOS

Description: CMC 11UH 800MA 2LN SMD AEC-Q200

Catalog: Common Mode Chokes

DataSheet: B82793C0113N201 PDF

Availability: 2077 pieces

Unit Price: ~~$2.35000~~

Current price of B82793C0113N201 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82793C0113N201 Specifications

Type	Description
Series:	B82793
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	11 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	800mA
DC Resistance (DCR) (Max):	80mOhm (Typ)
Voltage Rating - DC:	80V
Voltage Rating - AC:	42V
Operating Temperature:	-40°C ~ 125°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.280" L x 0.236" W (7.10mm x 6.00mm)
Height (Max):	0.189" (4.80mm)
Package / Case:	Horizontal, 4 Gull Wing
