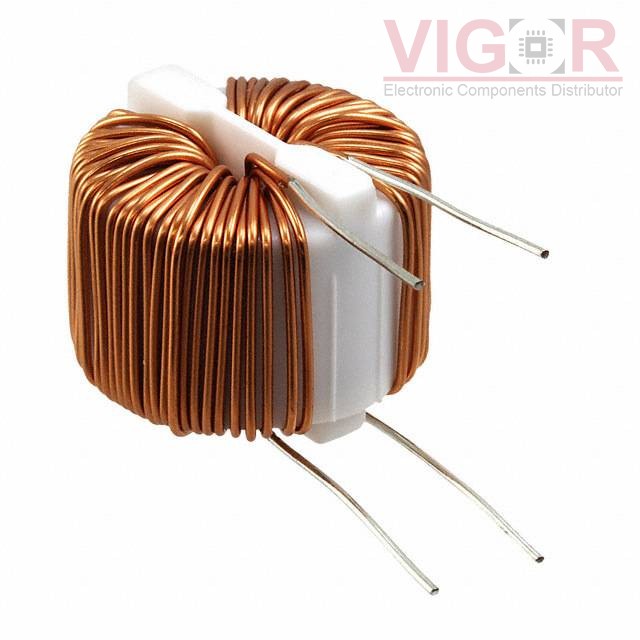

SC-02-500

Part No :: SC-02-500

Manufacturer: KEMET

Description: COMMON MODE CHOKE 5MH 2A 2LN TH

Catalog: Common Mode Chokes

DataSheet: SC-02-500 PDF

Availability: 90 pieces

Current price of SC-02-500 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SC-02-500 Specifications

Type	Description
Series:	SC
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	5 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2A
DC Resistance (DCR) (Max):	100mOhm
Voltage Rating - DC:	250V
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.063" Dia x 0.787" W (27.00mm x 20.00mm)
Height (Max):	1.063" (27.00mm)
Package / Case:	Vertical, No Base, 4 PC Pin
