LCFE160804H101TG

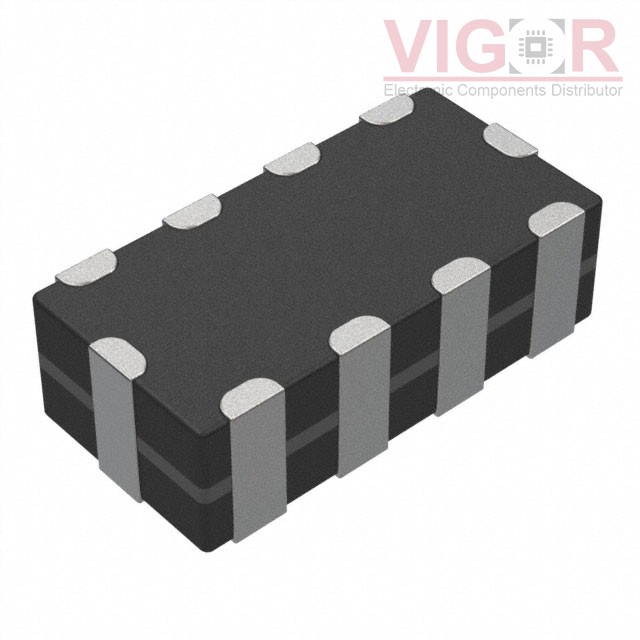

Image is for reference,
please contact us to get the real picture

Part No :: LCFE160804H101TG

Manufacturer: Wickmann / Littelfuse

Description: CMC 4LN 100MA 100 OHM SMD

Catalog: Common Mode Chokes

DataSheet: LCFE160804H101TG PDF

Availability: 13422 pieces

Unit Price: ~~$1.02000~~

Current price of LCFE160804H101TG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LCFE160804H101TG Specifications

Type	Description
Series:	LCFE
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	4
Impedance @ Frequency:	100 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	100mA
DC Resistance (DCR) (Max):	8Ohm
Voltage Rating - DC:	5V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	ESD
Mounting Type:	Surface Mount
Size / Dimension:	0.063" L x 0.032" W (1.60mm x 0.80mm)
Height (Max):	0.022" (0.55mm)
Package / Case:	0603 (1608 Metric), 10 Lead

Please confirm the specifications of the products when ordering.
