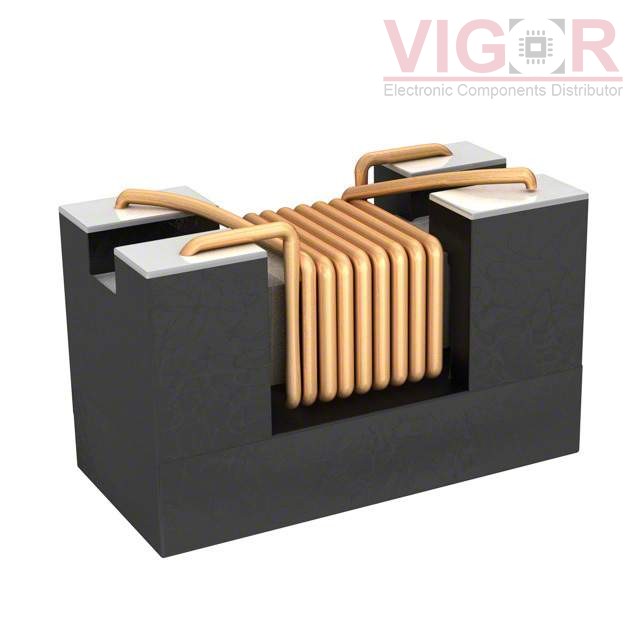

PE-0805CCMC121STS

Image is for reference,
please contact us to get the real picture

Part No :: PE-0805CCMC121STS

Manufacturer: PulseLarsen Antenna

Description: CMC 370MA 2LN 120 OHM SMD

Catalog: Common Mode Chokes

DataSheet: PE-0805CCMC121STS PDF

Availability: 0 pieces

Unit Price: ~~$0.26040~~

Current price of PE-0805CCMC121STS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PE-0805CCMC121STS Specifications

Type	Description
Series:	ChipChoke™ CCMC
Package:	Tape & Reel (TR)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	120 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	370mA
DC Resistance (DCR) (Max):	300mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max):	0.051" (1.30mm)
Package / Case:	Horizontal, 4 PC Pad
