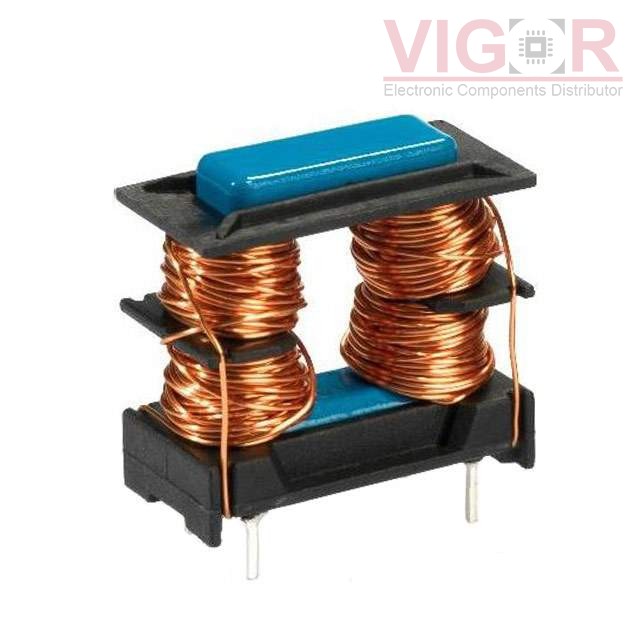

CMF23V-104700-B

Image is for reference,
please contact us to get the real picture

Part No :: CMF23V-104700-B

Manufacturer: Triad Magnetics

Description: CMC 100MH 700MA 2LN TH

Catalog: Common Mode Chokes

DataSheet: CMF23V-104700-B PDF

Availability: 451 pieces

Unit Price: ~~$2.25600~~

Current price of CMF23V-104700-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CMF23V-104700-B Specifications

Type	Description
Series:	CMF
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	100 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	700mA
DC Resistance (DCR) (Max):	1.99Ohm
Voltage Rating - DC:	-
Voltage Rating - AC:	300V
Operating Temperature:	-40°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.142" L x 0.591" W (29.00mm x 15.00mm)
Height (Max):	1.063" (27.00mm)
Package / Case:	Vertical, 4 PC Pin
