DR221-223AE

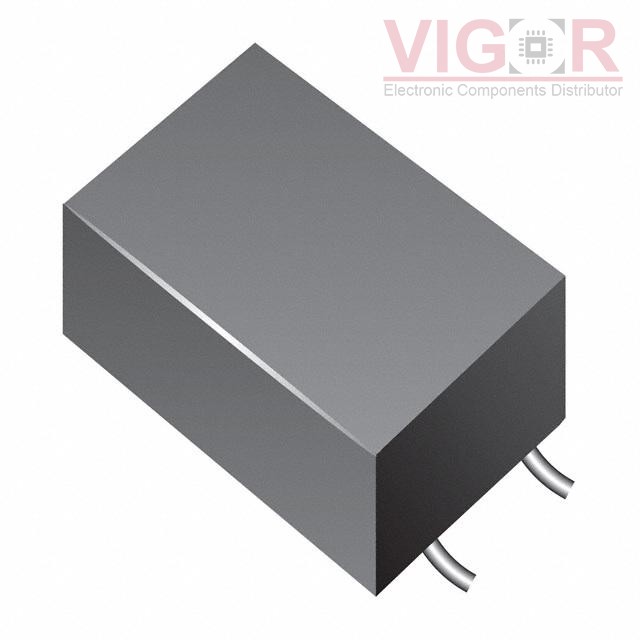

Product image
Product thumb
Part No :

DR221-223AE

Manufacturer
J.W. Miller / Bourns
VIGOR # :

4039017

Description
CMC 22UH 250MA 2LN SMD
Catalog
Common Mode Chokes
DataSheet
DR221-223AE PDF
Country of origin
-
Date code
-
ads
DR221-223AE Specifications
Type Description
Series:DR221
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:22 µH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):250mA
DC Resistance (DCR) (Max):230mOhm
Voltage Rating - DC:50V
Voltage Rating - AC:100V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.197" L x 0.130" W (5.00mm x 3.30mm)
Height (Max):0.130" (3.30mm)
Package / Case:Horizontal, 4 Flat Lead
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 2161
Shipped from
HK warehouse
Expected Shipping Date
Dec 29 - Jan 02 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.25 $1.25
500 $0.60 $300.63
1000 $0.54 $536.25
2500 $0.52 $1 300.00
5000 $0.50 $2 518.75
12500 $0.49 $6 093.75

Current price of DR221-223AE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
PA3747.206NL

PA3747.206NL

COMMON MODE CHOKE 1A 2LN TH

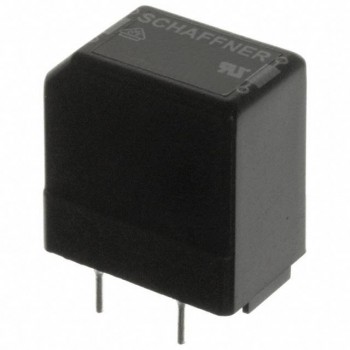

RN216-1-02-10M

RN216-1-02-10M

CMC 10MH 1A 2LN TH

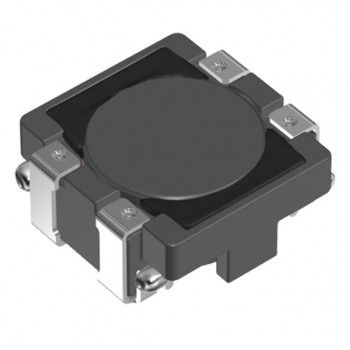

ACM4520V-231-2P-T00
