CMF23V-273141-B

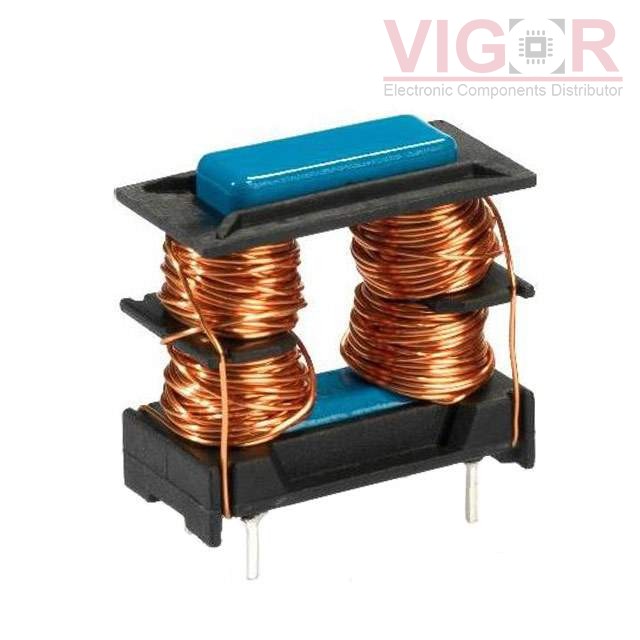

Product image
Product thumb
Part No :

CMF23V-273141-B

Manufacturer
Triad Magnetics
VIGOR # :

4039101

Description
CMC 27MH 1.4A 2LN TH
Catalog
Common Mode Chokes
DataSheet
CMF23V-273141-B PDF
Country of origin
-
Date code
-
ads
CMF23V-273141-B Specifications
Type Description
Series:CMF
Package:Bulk
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:27 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):1.4A
DC Resistance (DCR) (Max):484mOhm
Voltage Rating - DC:-
Voltage Rating - AC:300V
Operating Temperature:-40°C ~ 105°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:1.142" L x 0.591" W (29.00mm x 15.00mm)
Height (Max):1.063" (27.00mm)
Package / Case:Vertical, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 170700
Shipped from
HK warehouse
Expected Shipping Date
Apr 01 - Apr 05 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $3.2200 $3.22
10 $2.9736 $29.74
100 $2.0814 $208.14
500 $1.6850 $842.48
1000 $1.5363 $1 536.28
2500 $1.4867 $3 716.80

Current price of CMF23V-273141-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
