CPFC6D36NP-100M06

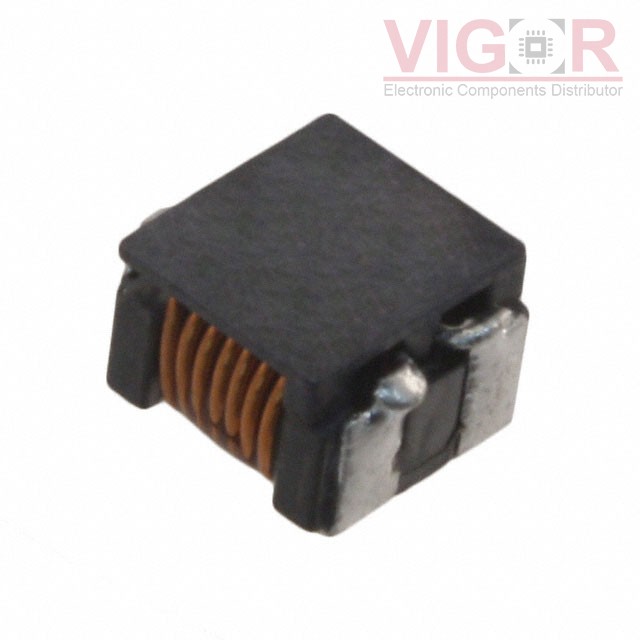

Image is for reference,
please contact us to get the real picture

Part No :: CPFC6D36NP-100M06

Manufacturer: Sumida Corporation

Description: CMC 2.5A 2LN 600 OHM SMD

Catalog: Common Mode Chokes

DataSheet: CPFC6D36NP-100M06 PDF

Availability: 563 pieces

Unit Price: ~~$4.08000~~

Current price of CPFC6D36NP-100M06 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CPFC6D36NP-100M06 Specifications

Type	Description
Series:	CPFC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	600 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2.5A
DC Resistance (DCR) (Max):	20mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-20°C ~ 100°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.244" L x 0.209" W (6.20mm x 5.30mm)
Height (Max):	0.150" (3.80mm)
Package / Case:	Horizontal, 4 J-Lead
