C301306-202NHF

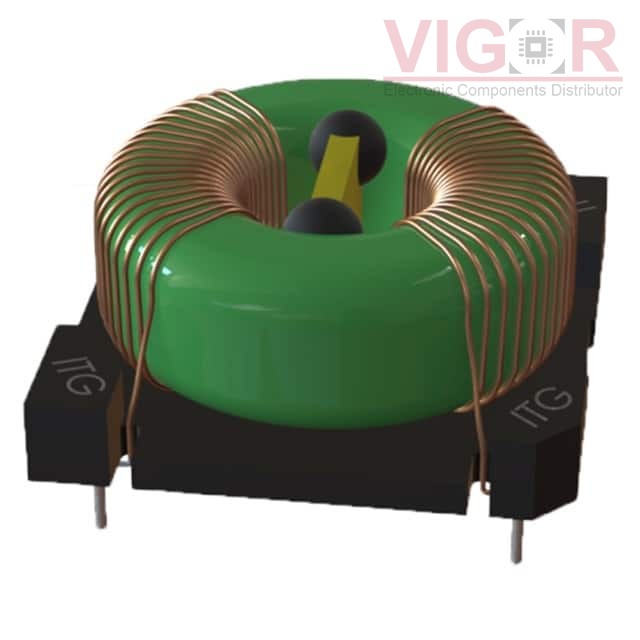

Image is for reference,
please contact us to get the real picture

Part No :: C301306-202NHF

Manufacturer: ITG Electronics, Inc.

Description: CMC 2MH 16A 2LN TH

Catalog: Common Mode Chokes

DataSheet: C301306-202NHF PDF

Availability: 9 pieces

Unit Price: ~~$20.00000~~

Current price of C301306-202NHF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

C301306-202NHF Specifications

Type	Description
Series:	C301306
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	2 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	16A
DC Resistance (DCR) (Max):	8mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.713" L x 1.713" W (43.50mm x 43.50mm)
Height (Max):	1.063" (27.00mm)
Package / Case:	Horizontal, 4 PC Pin
