SBT-0180W

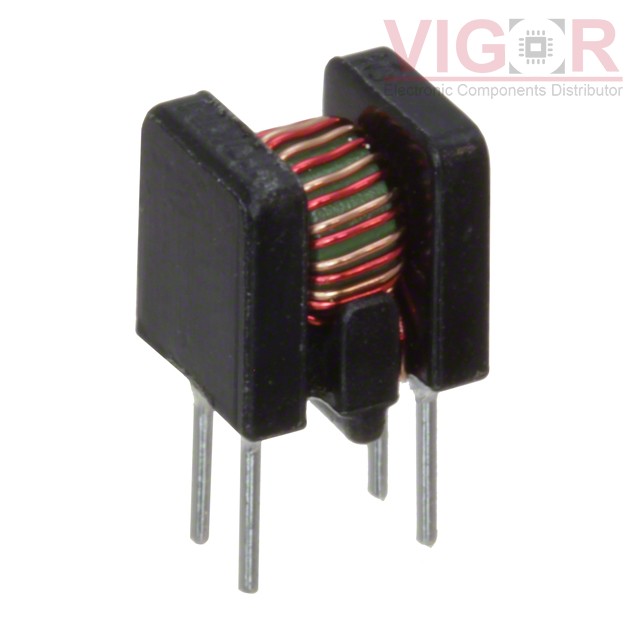

Product image
Product thumb
Part No :

SBT-0180W

Manufacturer
KEMET
VIGOR # :

4039768

Description
CMC TROID, NI-ZN, 80UH, TH
Catalog
Common Mode Chokes
DataSheet
SBT-0180W PDF
Country of origin
-
Date code
-
ads
SBT-0180W Specifications
Type Description
Series:SBT-01W
Package:Bulk
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:80 µH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):500mA
DC Resistance (DCR) (Max):55mOhm
Voltage Rating - DC:50V
Voltage Rating - AC:-
Operating Temperature:-25°C ~ 70°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:-
Height (Max):0.354" (9.00mm)
Package / Case:Vertical, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Oct 06 - Oct 10 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.9400 $2.94
10 $2.7150 $27.15
100 $1.9005 $190.05
500 $1.5385 $769.25
1000 $1.4028 $1 402.75
2500 $1.3575 $3 393.75

Current price of SBT-0180W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
RN102-1.5-02-1M6

RN102-1.5-02-1M6

CMC 1.6MH 1.5A 2LN TH

B82723A2402N001

B82723A2402N001

CMC 2.7MH 4A 2LN TH

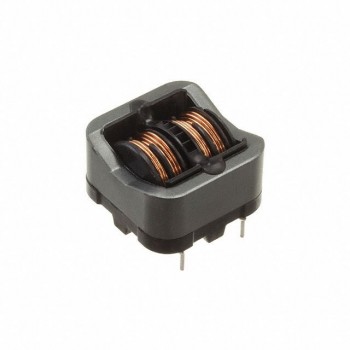

SSRH24NHS-25130
