CC2824J502R-00

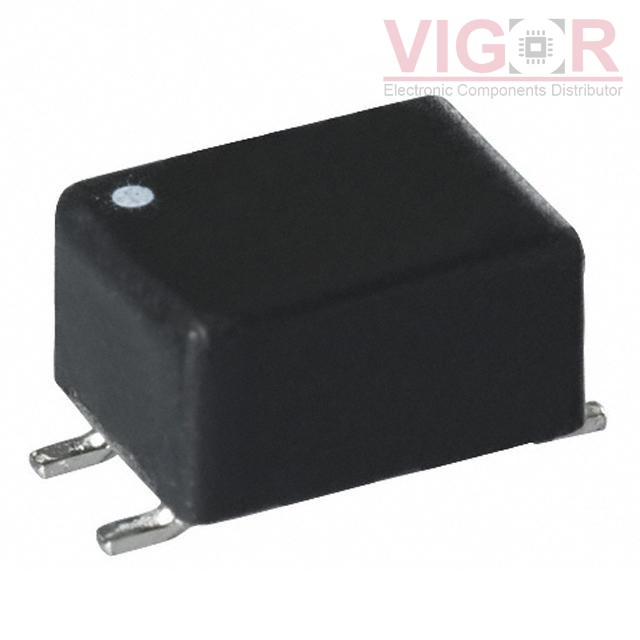

Product image
Product thumb
Part No :

CC2824J502R-00

Manufacturer
Laird - Performance Materials
VIGOR # :

4966747

Description
CMC 5UH 1.2A 2LN 400 OHM SMD
Catalog
Common Mode Chokes
DataSheet
CC2824J502R-00 PDF
Country of origin
-
Date code
-
ads
CC2824J502R-00 Specifications
Type Description
Series:CC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:400 Ohms @ 500 MHz
Inductance @ Frequency:5 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):1.2A
DC Resistance (DCR) (Max):130mOhm
Voltage Rating - DC:80V
Voltage Rating - AC:42V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.295" L x 0.217" W (7.50mm x 5.50mm)
Height (Max):0.150" (3.80mm)
Package / Case:Horizontal, 4 Flat Lead
