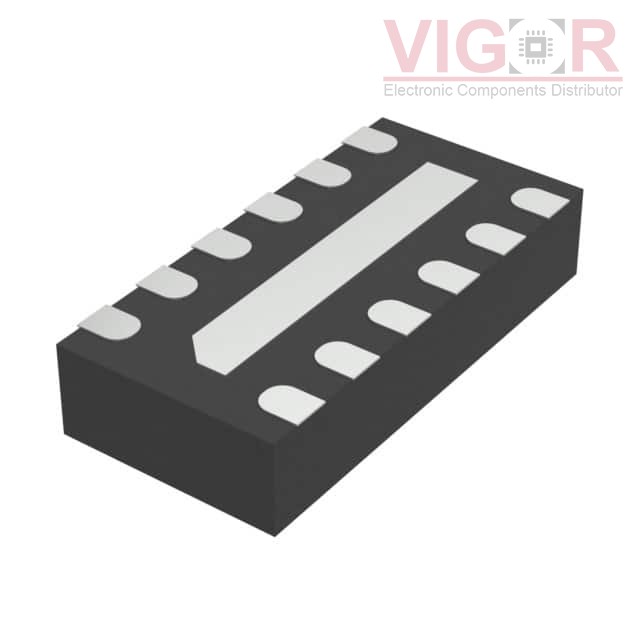

PEMI6QFN/WT,132

Part No :: PEMI6QFN/WT,132

Manufacturer: VIGOR

Description: DATA LINE FILTER

Catalog: EMI/RFI Filters (LC, RC Networks)

DataSheet: PEMI6QFN/WT,132 PDF

Availability: 20000 pieces

Current price of PEMI6QFN/WT,132 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PEMI6QFN/WT,132 Specifications

Type	Description
Series:	PEMIxQFN
Package:	Bulk
Part Status:	Obsolete
Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	6
Center / Cutoff Frequency:	-
Attenuation Value:	32dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms):	200
Current:	-
Values:	R = 200Ohms, C = 23pF (Total)
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	LAN, PCS, WAN
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	12-XFDFN
Size / Dimension:	0.098" L x 0.047" W (2.50mm x 1.20mm)
Height:	0.020" (0.50mm)
