ECLAMP2342N.TCT

ECLAMP2342N.TCT

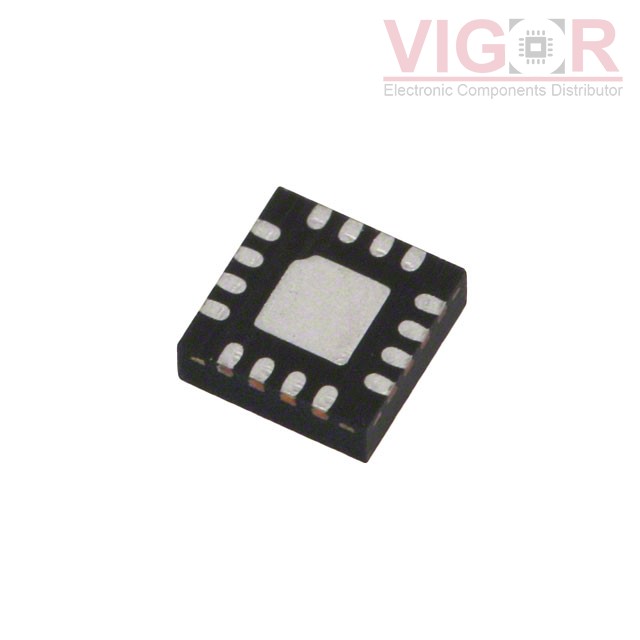

Image is for reference,
please contact us to get the real picture

Part No :

ECLAMP2342N.TCT

Manufacturer
Semtech
Description
FILTER RC(PI) 100 OHM/12PF SMD
Catalog
EMI/RFI Filters (LC, RC Networks)
Shipped from
HK warehouse
Expected Shipping Date
Oct 03 - Oct 07 2025
DataSheet
ECLAMP2342N.TCT PDF
Availability
105 pieces
Unit Price
$1.36000

Current price of ECLAMP2342N.TCT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ECLAMP2342N.TCT Specifications
Type Description
Series:EClamp™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:8
Center / Cutoff Frequency:-
Attenuation Value:30dB @ 1GHz ~ 2.5GHz
Resistance - Channel (Ohms):100
Current:-
Values:R = 100Ohms, C = 12pF (Total)
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:16-QFN
Size / Dimension:0.118" L x 0.118" W (3.00mm x 3.00mm)
Height:0.039" (1.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CS5376-BQ

CS5376-BQ

LOW POWER MULTI CHANNEL DECIMATI
HOT NFM21HC224R1A3D

NFM21HC224R1A3D

FILTER LC HI FREQ 220000PF 0805

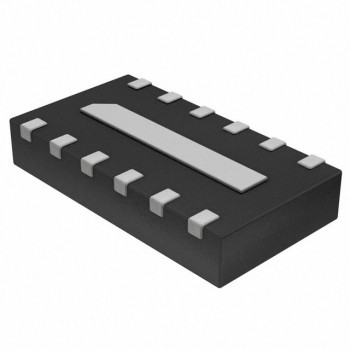

HOT EMI9406MUTAG
