USBUF02W6

USBUF02W6

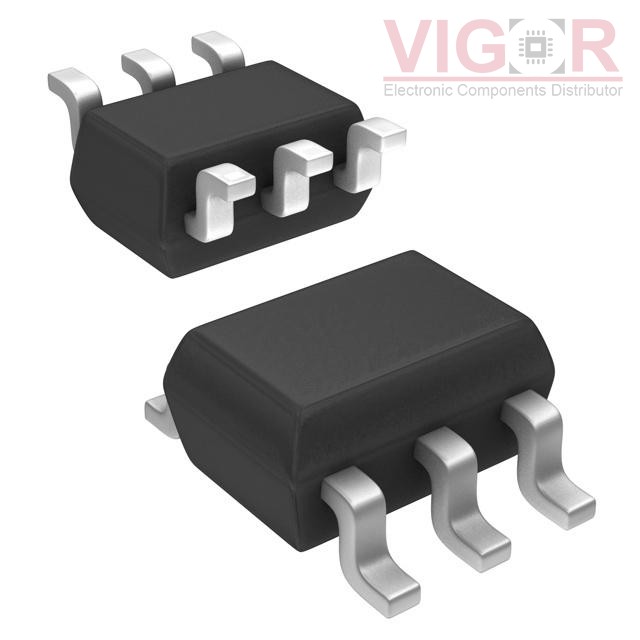

Image is for reference,
please contact us to get the real picture

Part No :

USBUF02W6

Manufacturer
STMicroelectronics
Description
FILTER RC(PI) 22 OHM/47PF SMD
Catalog
EMI/RFI Filters (LC, RC Networks)
Shipped from
HK warehouse
Expected Shipping Date
Oct 04 - Oct 08 2025
DataSheet
USBUF02W6 PDF
Availability
64501 pieces
Unit Price
$0.54000

Current price of USBUF02W6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

USBUF02W6 Specifications
Type Description
Series:USBUF
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:2
Center / Cutoff Frequency:-
Attenuation Value:-28dB @ 900MHz
Resistance - Channel (Ohms):22
Current:-
Values:R = 22Ohms, C = 47pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 125°C
Applications:USB
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:6-TSSOP, SC-88, SOT-363
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height:0.043" (1.09mm)
