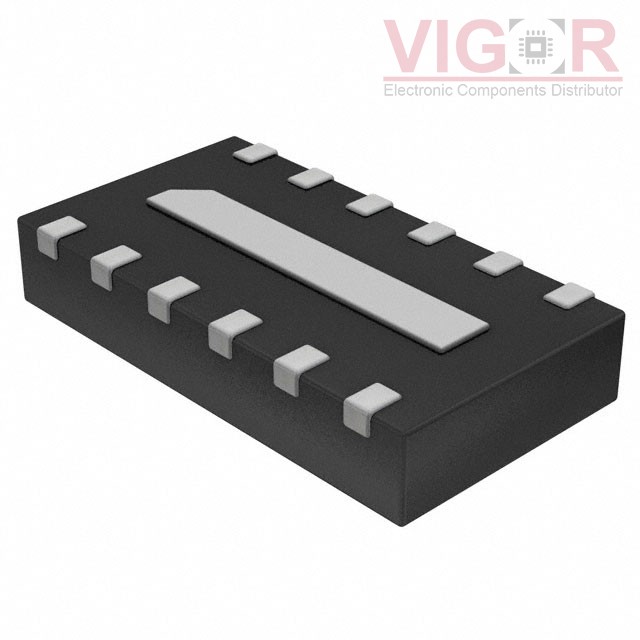

CM1630-06DE

Part No :: CM1630-06DE

Manufacturer: VIGOR

Description: DATA LINE FILTER, 6 FUNCTION(S)

Catalog: EMI/RFI Filters (LC, RC Networks)

DataSheet: CM1630-06DE PDF

Availability: 3000 pieces

Current price of CM1630-06DE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CM1630-06DE Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	6
Center / Cutoff Frequency:	200MHz (Cutoff)
Attenuation Value:	25dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms):	100
Current:	-
Values:	R = 100Ohms, C = 8.5pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	12-UFDFN Exposed Pad
Size / Dimension:	0.098" L x 0.053" W (2.50mm x 1.35mm)
Height:	0.022" (0.55mm)
