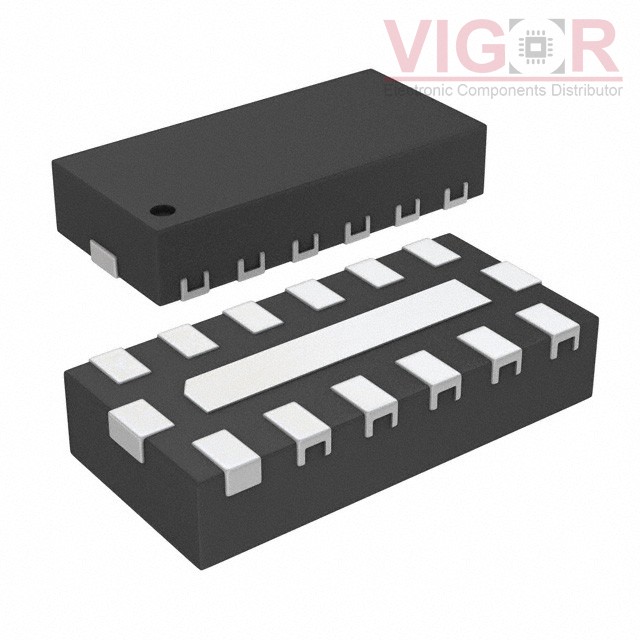

AOZ8175DI

Image is for reference,
please contact us to get the real picture

Part No :: AOZ8175DI

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: FILTER RC(PI) 100 OHM/8PF SMD

Catalog: EMI/RFI Filters (LC, RC Networks)

Shipped from: HK warehouse

Expected Shipping Date: Oct 10 - Oct 14 2025

DataSheet: AOZ8175DI PDF

Availability: 0 pieces

Unit Price: ~~$0.24640~~

Current price of AOZ8175DI is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AOZ8175DI Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	6
Center / Cutoff Frequency:	220MHz (Cutoff)
Attenuation Value:	-20dB @ 1GHz ~ 3GHz
Resistance - Channel (Ohms):	100
Current:	20 mA
Values:	R = 100Ohms, C = 8pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	5V
Mounting Type:	Surface Mount
Package / Case:	12-UFDFN Exposed Pad
Size / Dimension:	0.118" L x 0.053" W (3.00mm x 1.35mm)
Height:	0.024" (0.60mm)

Please confirm the specifications of the products when ordering.
