EMIF06-1005N12

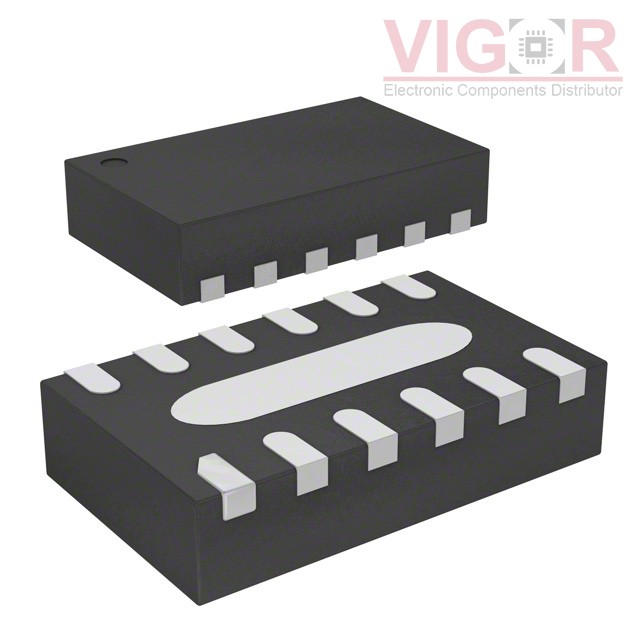

Image is for reference,
please contact us to get the real picture

Part No :: EMIF06-1005N12

Manufacturer: STMicroelectronics

Description: FILTER RC(PI) 100 OHM/45PF SMD

Catalog: EMI/RFI Filters (LC, RC Networks)

Shipped from: HK warehouse

Expected Shipping Date: Oct 11 - Oct 15 2025

DataSheet: EMIF06-1005N12 PDF

Availability: 0 pieces

Unit Price: ~~$0.57000~~

Current price of EMIF06-1005N12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EMIF06-1005N12 Specifications

Type	Description
Series:	IPAD™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	6
Center / Cutoff Frequency:	-
Attenuation Value:	-
Resistance - Channel (Ohms):	100
Current:	-
Values:	R = 100Ohms, C = 45pF (Total)
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	12-UFDFN Exposed Pad
Size / Dimension:	0.098" L x 0.047" W (2.50mm x 1.20mm)
Height:	0.022" (0.55mm)

Please confirm the specifications of the products when ordering.
