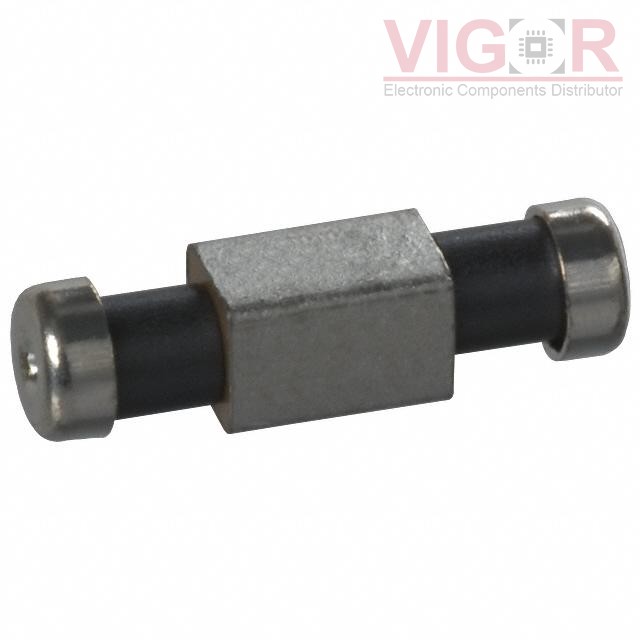

NFE61PT101Z1H9L

Part No :: NFE61PT101Z1H9L

Manufacturer: TOKO / Murata

Description: FILTER LC(T) 100PF SMD

Catalog: EMI/RFI Filters (LC, RC Networks)

DataSheet: NFE61PT101Z1H9L PDF

Availability: 5119 pieces

Current price of NFE61PT101Z1H9L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NFE61PT101Z1H9L Specifications

Type	Description
Series:	EMIFIL®, NFE61
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Low Pass
Filter Order:	3rd
Technology:	LC (T-Type)
Number of Channels:	1
Center / Cutoff Frequency:	-
Attenuation Value:	-
Resistance - Channel (Ohms):	-
Current:	2 A
Values:	C = 100pF
ESD Protection:	No
Operating Temperature:	-40°C ~ 85°C
Applications:	General Purpose
Voltage - Rated:	50V
Mounting Type:	Surface Mount
Package / Case:	2706 (6816 Metric), 3 PC Pad
Size / Dimension:	0.268" L x 0.063" W (6.80mm x 1.60mm)
Height:	0.075" (1.90mm)
