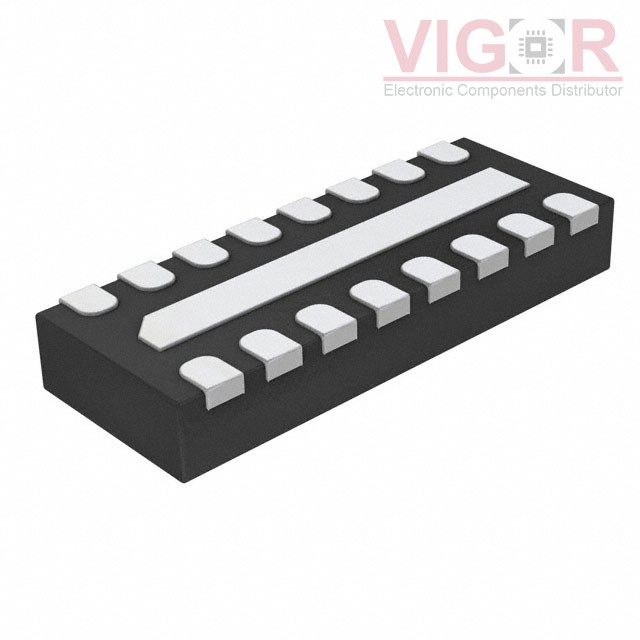

PEMI8QFN/WE,132

Part No :: PEMI8QFN/WE,132

Manufacturer: VIGOR

VIGOR # :: 4026134

Description: DATA LINE FILTER

Catalog: EMI/RFI Filters (LC, RC Networks)

DataSheet: PEMI8QFN/WE,132 PDF

Country of origin: -

Date code: -

PEMI8QFN/WE,132 Specifications

Type	Description
Series:	PEMIxQFN
Package:	Bulk
Part Status:	Obsolete
Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	8
Center / Cutoff Frequency:	-
Attenuation Value:	18dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms):	200
Current:	-
Values:	R = 200Ohms, C = 8.5pF (Total)
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	LAN, PCS, WAN
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	16-XFDFN Exposed Pad
Size / Dimension:	0.130" L x 0.047" W (3.30mm x 1.20mm)
Height:	0.020" (0.50mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 12000

Shipped from

HK warehouse

Expected Shipping Date

Feb 04 - Feb 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.18~~	~~$0.18~~

Current price of PEMI8QFN/WE,132 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

NUF6406MNT1G

FILTER RC 100OHM/13PF 138MHZ SMD

NUF8402MNT4G

DATA LINE FILTER, 8 FUNCTION(S),

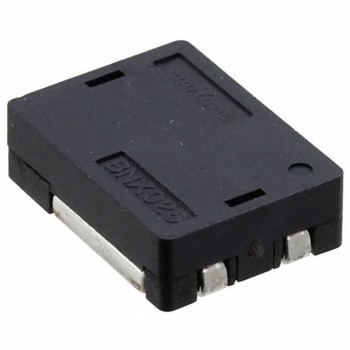

BNX024H01L
