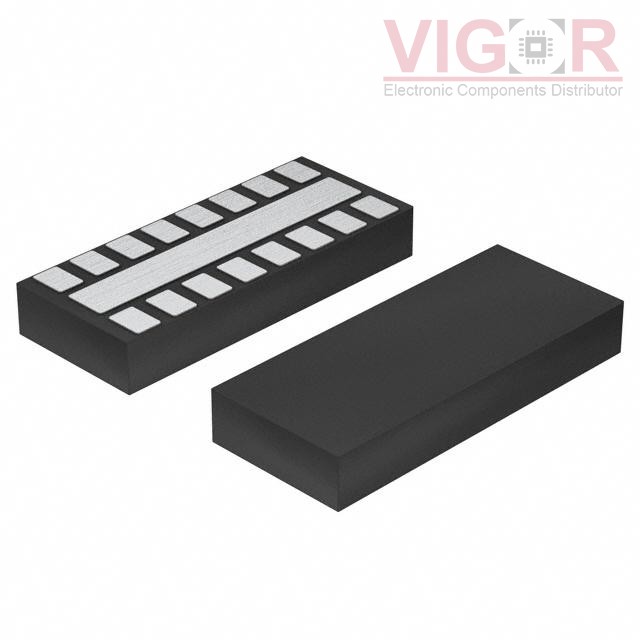

IP4253CZ16-8,118

Image is for reference,
please contact us to get the real picture

Part No :: IP4253CZ16-8,118

Manufacturer: VIGOR

Description: IP4253CZ16-8 - DATA LINE FILTER

Catalog: EMI/RFI Filters (LC, RC Networks)

Shipped from: HK warehouse

Expected Shipping Date: Oct 12 - Oct 16 2025

DataSheet: IP4253CZ16-8,118 PDF

Availability: 732050 pieces

Unit Price: ~~$0.11000~~

Current price of IP4253CZ16-8,118 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IP4253CZ16-8,118 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	8
Center / Cutoff Frequency:	-
Attenuation Value:	33dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms):	200
Current:	-
Values:	R = 200Ohms, C = 30pF (Total)
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	LAN, WAN
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	16-XFDFN Exposed Pad
Size / Dimension:	0.130" L x 0.053" W (3.30mm x 1.35mm)
Height:	0.020" (0.50mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
