NFL18ST706H1A3D

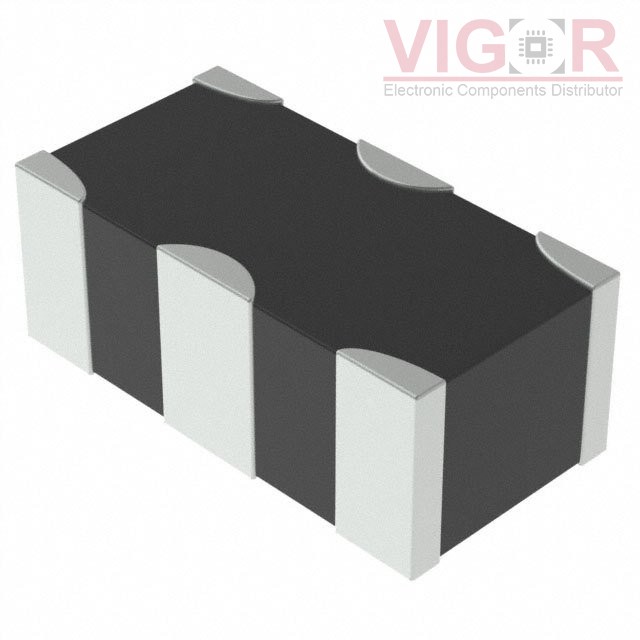

Product image
Product thumb
Part No :

NFL18ST706H1A3D

Manufacturer
TOKO / Murata
VIGOR # :

4026219

Description
FILTER LC(T) 230NH/70PF SMD
Catalog
EMI/RFI Filters (LC, RC Networks)
DataSheet
NFL18ST706H1A3D PDF
Country of origin
Confirming
Date code
TBC
ads
NFL18ST706H1A3D Specifications
Type Description
Series:EMIFIL®, NFL18
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Low Pass
Filter Order:3rd
Technology:LC (T-Type)
Number of Channels:1
Center / Cutoff Frequency:70MHz (Cutoff)
Attenuation Value:6dB @ 0MHz ~ 70MHz
Resistance - Channel (Ohms):-
Current:75 mA
Values:L = 230nH, C = 70pF
ESD Protection:No
Operating Temperature:-55°C ~ 125°C
Applications:General Purpose
Voltage - Rated:10V
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric), 3 PC Pad
Size / Dimension:0.063" L x 0.032" W (1.60mm x 0.80mm)
Height:0.035" (0.90mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: Available on Request ?
Shipped from
HK warehouse
Expected Shipping Date
Awaiting confirmation
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.5200 $0.52
4000 $0.2574 $1 029.76
8000 $0.2414 $1 930.80
12000 $0.2253 $2 703.12
28000 $0.2140 $5 992.00

Current price of NFL18ST706H1A3D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
