BNX022-01L

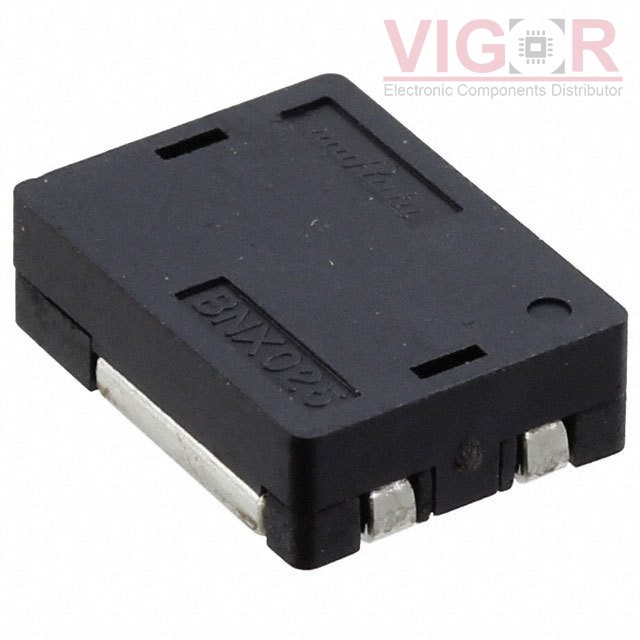

Image is for reference,
please contact us to get the real picture

Part No :: BNX022-01L

Manufacturer: TOKO / Murata

Description: FILTER LC 1UF SMD

Catalog: EMI/RFI Filters (LC, RC Networks)

Shipped from: HK warehouse

Expected Shipping Date: Oct 14 - Oct 18 2025

DataSheet: BNX022-01L PDF

Availability: 1691 pieces

Unit Price: ~~$5.49000~~

Current price of BNX022-01L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BNX022-01L Specifications

Type	Description
Series:	EMIFIL®, BNX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Low Pass
Filter Order:	5th
Technology:	LC
Number of Channels:	2
Center / Cutoff Frequency:	-
Attenuation Value:	35dB @ 1MHz ~ 1GHz
Resistance - Channel (Ohms):	0.00043
Current:	20 A
Values:	C = 1µF
ESD Protection:	No
Operating Temperature:	-40°C ~ 125°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	50V
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Size / Dimension:	0.476" L x 0.358" W (12.10mm x 9.10mm)
Height:	0.130" (3.30mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
