FN7661-32-M4

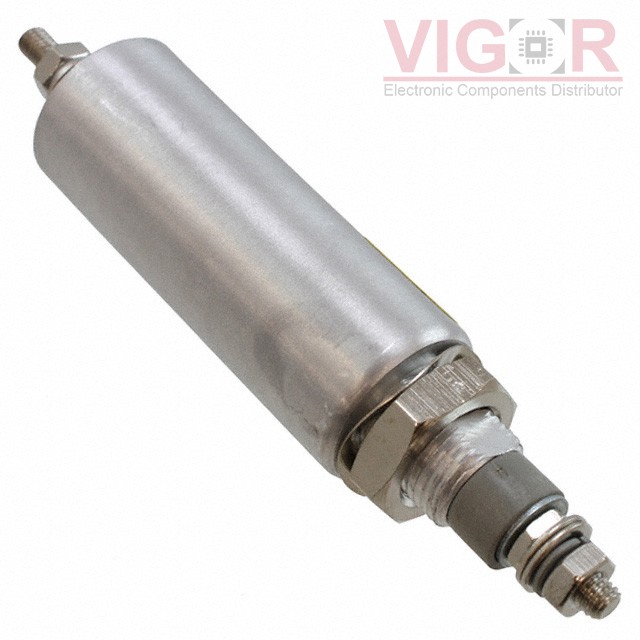

Image is for reference,
please contact us to get the real picture

Part No :: FN7661-32-M4

Manufacturer: Schaffner EMC, Inc.

Description: FILTER LC(PI) 70NH/0.1UF BOLT

Catalog: EMI/RFI Filters (LC, RC Networks)

Shipped from: HK warehouse

Expected Shipping Date: Oct 11 - Oct 15 2025

DataSheet: FN7661-32-M4 PDF

Availability: 0 pieces

Unit Price: ~~$111.39000~~

Current price of FN7661-32-M4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FN7661-32-M4 Specifications

Type	Description
Series:	FN 766X
Package:	Tray
Part Status:	Active
Type:	Low Pass
Filter Order:	3rd
Technology:	LC (Pi)
Number of Channels:	1
Center / Cutoff Frequency:	-
Attenuation Value:	-
Resistance - Channel (Ohms):	0.0007
Current:	32 A
Values:	L = 70nH, C = 0.1µF
ESD Protection:	No
Operating Temperature:	-40°C ~ 100°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	130V
Mounting Type:	Bolt Mount
Package / Case:	Axial - Threaded Terminals
Size / Dimension:	0.787" Dia x 2.874" L (20.00mm x 73.00mm)
Height:	-

Please confirm the specifications of the products when ordering.
