IP4254CZ12-6-TTL,1

IP4254CZ12-6-TTL,1

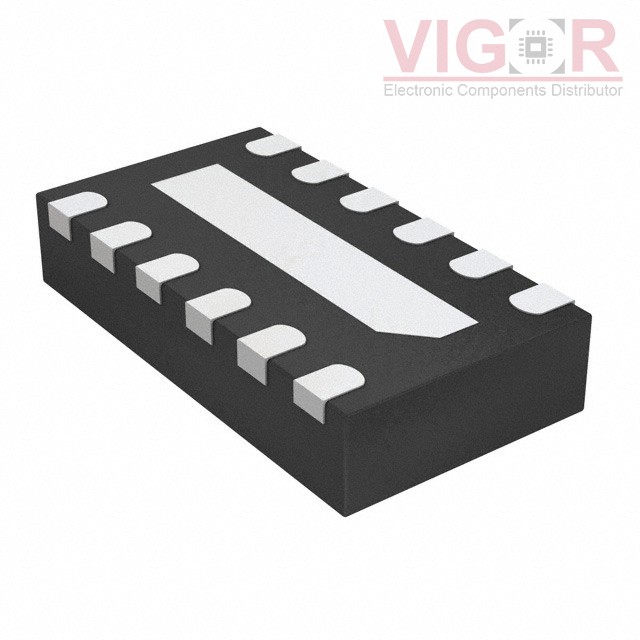

Image is for reference,
please contact us to get the real picture

Part No :

IP4254CZ12-6-TTL,1

Manufacturer
VIGOR
Description
6-TTL - DATA LINE FILTER
Catalog
EMI/RFI Filters (LC, RC Networks)
Shipped from
HK warehouse
Expected Shipping Date
Oct 10 - Oct 14 2025
DataSheet
IP4254CZ12-6-TTL,1 PDF
Availability
0 pieces
Unit Price
$0.15000

Current price of IP4254CZ12-6-TTL,1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IP4254CZ12-6-TTL,1 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:6
Center / Cutoff Frequency:-
Attenuation Value:28dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms):100
Current:-
Values:R = 100Ohms, C = 30pF (Total)
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:LAN, WAN
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:12-UFDFN Exposed Pad
Size / Dimension:0.098" L x 0.053" W (2.50mm x 1.35mm)
Height:0.022" (0.55mm)
