AEMIF-0805-201M-16-T

AEMIF-0805-201M-16-T

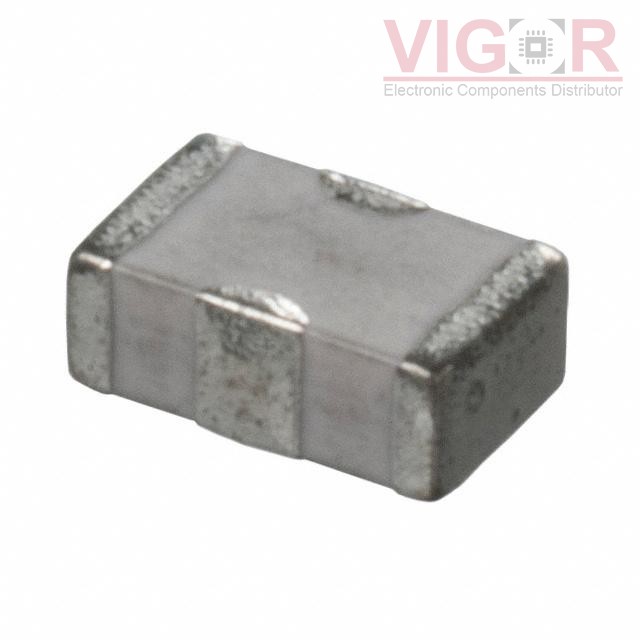

Image is for reference,
please contact us to get the real picture

Part No :

AEMIF-0805-201M-16-T

Manufacturer
Abracon
Description
FILTER RC(PI) 1 OHM 200MHZ SMD
Catalog
EMI/RFI Filters (LC, RC Networks)
Shipped from
HK warehouse
Expected Shipping Date
Oct 13 - Oct 17 2025
DataSheet
AEMIF-0805-201M-16-T PDF
Availability
0 pieces
Unit Price
$0.16320

Current price of AEMIF-0805-201M-16-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AEMIF-0805-201M-16-T Specifications
Type Description
Series:AEMIF-0805
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:1
Center / Cutoff Frequency:200MHz (Cutoff)
Attenuation Value:20dB @ 450MHz ~ 2GHz
Resistance - Channel (Ohms):1
Current:250 mA
Values:R = 1Ohm
ESD Protection:No
Operating Temperature:-40°C ~ 85°C
Applications:General Purpose
Voltage - Rated:16V
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Size / Dimension:0.079" L x 0.047" W (2.00mm x 1.20mm)
Height:0.046" (1.17mm)
