ACH4518-331-TD01

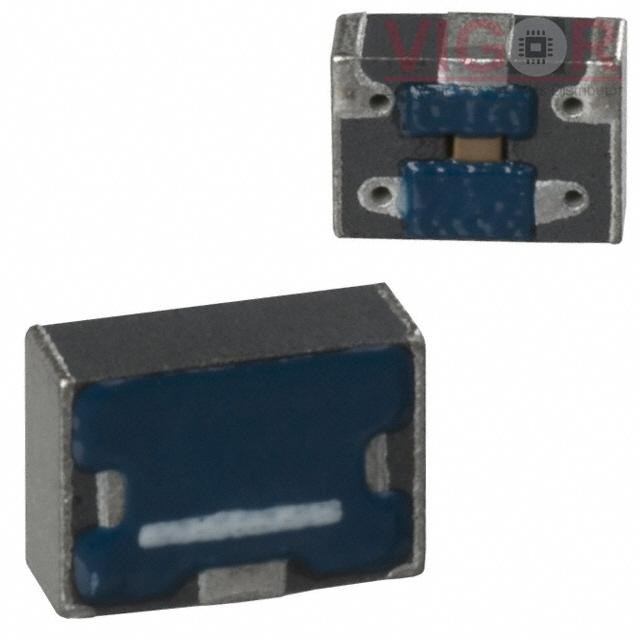

Image is for reference,
please contact us to get the real picture

Part No :: ACH4518-331-TD01

Manufacturer: TDK Corporation

Description: FILTER LC(T) SMD

Catalog: EMI/RFI Filters (LC, RC Networks)

Shipped from: HK warehouse

Expected Shipping Date: Oct 25 - Oct 29 2025

DataSheet: ACH4518-331-TD01 PDF

Availability: 0 pieces

Unit Price: ~~$0.27200~~

Current price of ACH4518-331-TD01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACH4518-331-TD01 Specifications

Type	Description
Series:	ACH
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Type:	Low Pass
Filter Order:	3rd
Technology:	LC (T-Type)
Number of Channels:	1
Center / Cutoff Frequency:	-
Attenuation Value:	25dB @ 115MHz ~ 205MHz
Resistance - Channel (Ohms):	0.06
Current:	2 A
Values:	-
ESD Protection:	No
Operating Temperature:	-40°C ~ 125°C
Applications:	General Purpose
Voltage - Rated:	50V
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric), 3 PC Pad
Size / Dimension:	0.071" L x 0.177" W (1.80mm x 4.50mm)
Height:	0.138" (3.50mm)

Please confirm the specifications of the products when ordering.
