CSPEMI306AG

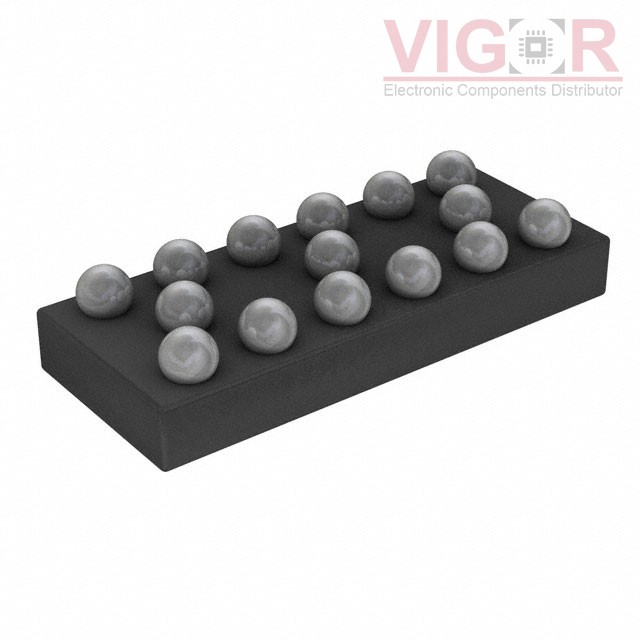

Image is for reference,
please contact us to get the real picture

Part No :: CSPEMI306AG

Manufacturer: VIGOR

Description: DATA LINE FILTER

Catalog: EMI/RFI Filters (LC, RC Networks)

Shipped from: HK warehouse

Expected Shipping Date: Oct 10 - Oct 14 2025

DataSheet: CSPEMI306AG PDF

Availability: 8150 pieces

Unit Price: ~~$0.20000~~

Current price of CSPEMI306AG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSPEMI306AG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	6
Center / Cutoff Frequency:	58MHz (Cutoff)
Attenuation Value:	30dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms):	100
Current:	-
Values:	R = 100Ohms, C = 30pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	15-UFBGA, WLCSP
Size / Dimension:	0.117" L x 0.052" W (2.96mm x 1.33mm)
Height:	0.026" (0.65mm)

Please confirm the specifications of the products when ordering.
